Description
Description
Audio Player Features
- Supported file formats:
– HD Audio: DFF / DSF / DSD (up to 24-bit/256 kHz)
– Uncompressed: WAV / FLAC / APE / AIFF
– Compressed: MP3 / AAC / OGG / WMA / MV
– Can be saved to optional USB media (FAT32, NTFS) -
Can be controlled via:

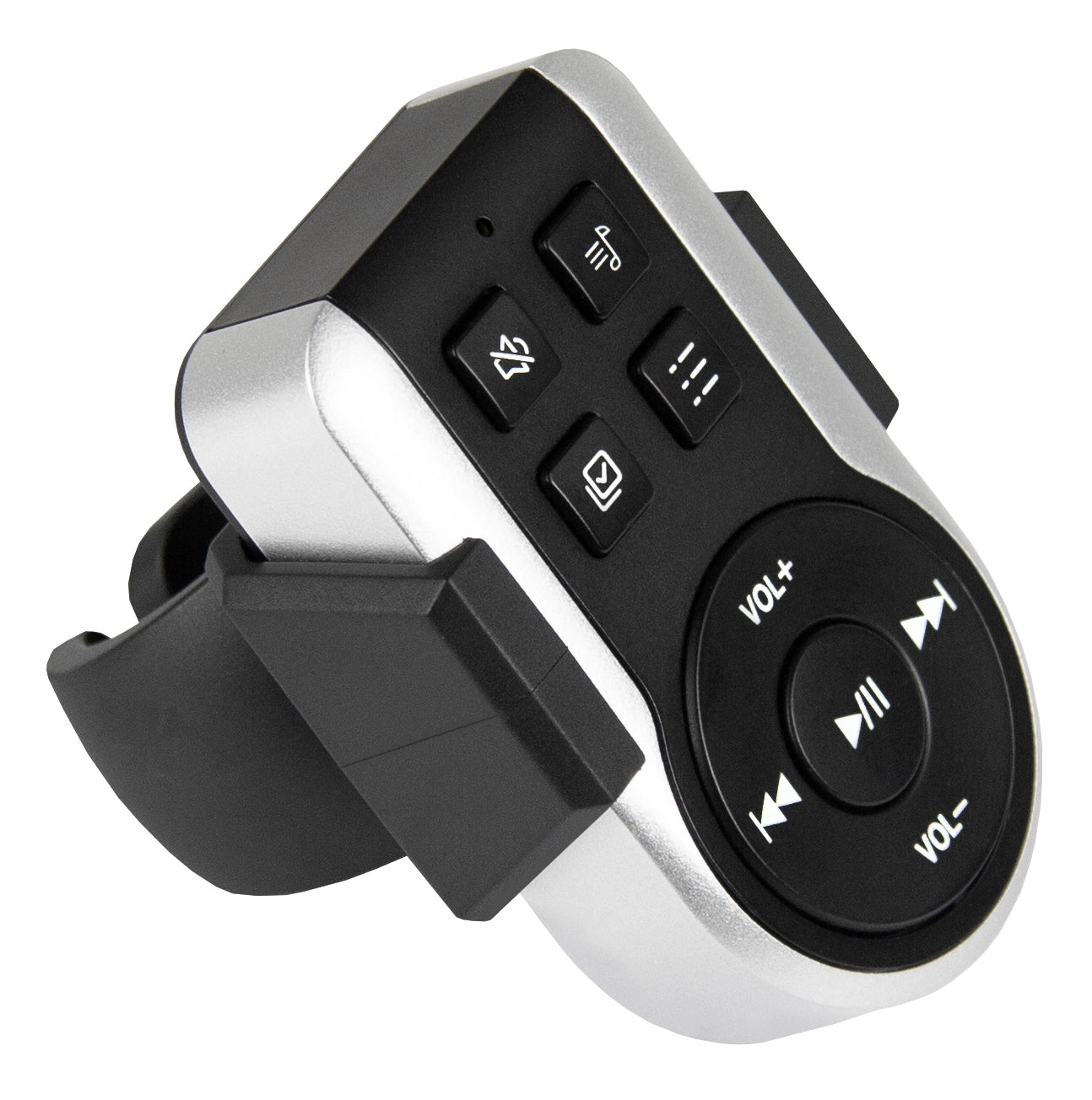

– RC-BT steering wheel remote control included via Bluetooth ®
– ESX Music application for iOS/Android via Bluetooth ®
– Optional RC-QE cable remote control with large LCD color display
DSP Properties
- Analog Devices™ DSP chip, dual 2x32-bit ADAU1452 processor, 294 MHz, 96 kHz Full HD audio
- AKM Velvet Sound™ Series 5 Signal Converter, 32-bit A/D, 32-bit D/A
- HP/LP/BP at 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps
- Input mixer, subwoofer control, priority input mode for digital input signals
- Input sensitivity: low level 1~6V/RMS, high level 1~15 or 15~45V/RMS
- Signal-to-noise ratio (A-weighted): analog input 111 dB, digital input 117 dB
- THD: analog input <0.001%, digital input <0.0004%
-
Integrated Bluetooth® receiver with antenna for DSP control via app and Full HD audio streaming
Bluetooth version 5.0, profiles: A2DP/AVRCP, codecs: aptX, aptx LL, AAC, SBC - REM OUT function for external devices, MODE switching input for e.g. hoods (Preset Auto Switch)
-
Controllable via:
– ESX DSP Toolkit app for iOS/Android via Bluetooth ® or PC software – Optional RC-QE remote control with large LCD colour display
Technical data
Full HD digital audio player with 12-channel sound processor
8 RCA inputs
8 x high level inputs with EPS PRO up to 40 V/RMS (via Molex)
1 x optical stereo input, S/PDIF 192 kHz, 24-bit
1 x coaxial stereo input, S/PDIF 192 kHz, 24 bit
1 x Bluetooth® stereo input via audio streaming
1 x USB socket for PC software
1 x USB socket for remote control
1 x USB multimedia socket
12 x RCA outputs at 6 V RMS (THD+N <0.0004%)
1 x RCA video output
Dimensions 277 x 43 x 155 mm
DSP ESX QE812SP
