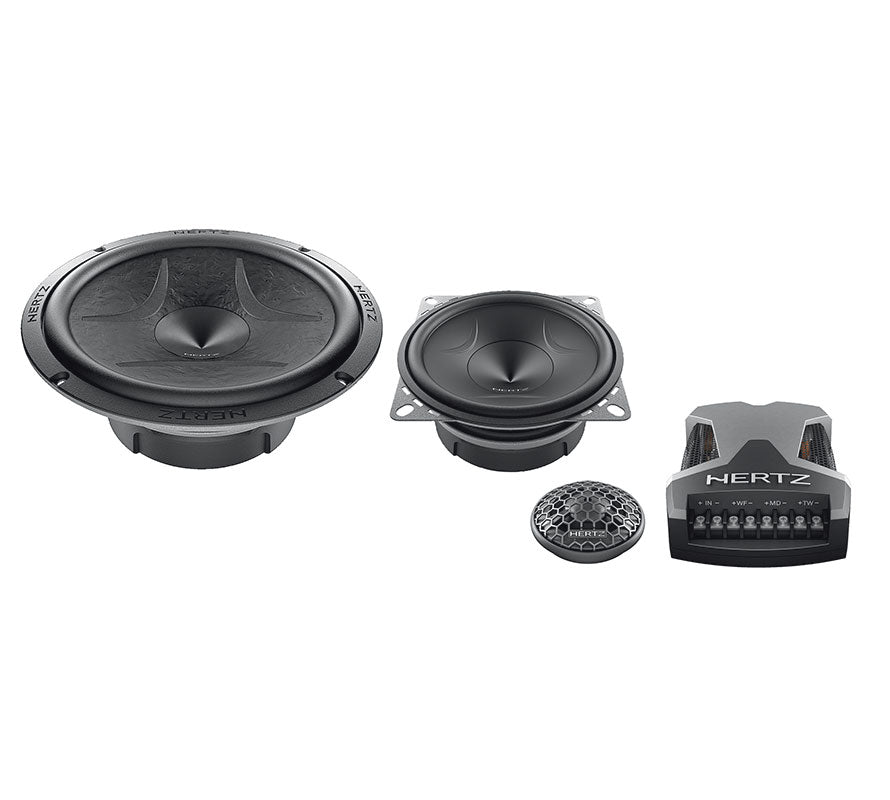

ESK 163 L.5 3-way separate kit

We offer several delivery options to meet your needs.

Free shipments are made via a relay point.

If you prefer home delivery, a surcharge may apply when ordering. Do not hesitate to contact us for more details!

Our team is at your disposal via Chat to help you select the products that suit you best 💡😉

We can help you create a cart directly via live chat if you are not sure about your choice. Our team will be happy to offer you their technical expertise 💪🙂

To track your order, we invite you to use the Chat available at the bottom right of the store ➡️⬇️

If you have any questions regarding your order, Our team will answer you as soon as possible 🙂

For returns, you have 14 days after receiving your items to return them if you are not completely satisfied 🔁

For detailed information on the procedures, we invite you to consult our return policy or contact us directly 📧

125 Wrms 3 way

Component - Three way system Woofer size mm (in.) 165 (6.5) Midwoofer size mm (in.) 100 (4) Tweeter diaphragm mm (in.) 26 (1) Power handling W peak 375 W continuous 125 Impedance Ω 4 Frequency response Hz 50 ÷ 23k Sensitivity dB SPL 92 Woofer magnet size D·d·h mm (in.) 85 x 32 x 17 (3.55 x 1.26 x 0.7) Midwoofer magnet size D·d·h mm (in.) 70 x 32 x 10 (2.7 x 1.26 x 0.4) Tweeter magnet size D·d·h mm (in.) 19 x 3 (0.75 x 0.12) Woofer voice coil Ø mm (in.) 25 (1) Midwoofer voice coil Ø mm (in.) 25 (1) Tweeter voice coil Ø mm (in.) 20 (0.8) Woofer magnet - High density flux ferrite Midwoofer magnet - High density flux ferrite Tweeter magnet - Neodymium Woofer cone - Water repellent unpressed paper Midwoofer cone - Water repellent pressed paper Tweeter dome - Tetolon Crossover type LP/BP/HP @ 600 Hz - 12/6 dB Oct. 6 kHz - 6/12 dB Oct. Component adjustment dB +2; 0; -2 Woofer weight of one component kg (lb.) 0.98 (2.16) Midwoofer weight of one component kg (lb.) 0.45 (0.99) Tweeter weight of one component kg (lb.) 0.03 (0.07) Crossover weight of one component kg (lb.) 0.42 (0.93)
