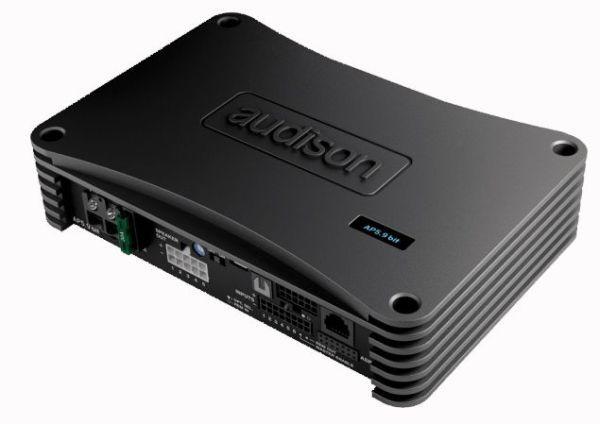

AP5.9 BIT AUDISON

The AP5.9 bit amplifier is ideal for building a two-way active amplifier system with
the fifth mono channel of 270 W at 2 O.
The built-in processor, which this amplifier shares with the AP8.9 bit,
allows to assign the pre-outputs to the AP4 D amplifier,
thus creating a very powerful system in a small space thanks to the "rack mount" system.


Technical sheet:


Distortion - THD @ 1 kHz, 4, 90% Output Power (Ch 1-2-3-4): 0.08 %
Distortion - THD @ 1 kHz, 4 90% Output Power (Ch 5): 0.1 %
Bandwidth (-3 dB, 2 V RMS, 4): 10€ 20k Hz / 10€ 500Hz SUB
S/N ratio @ A weighted, 1V, Max Power: 95 dBA
Damping factor @ 1 kHz, 2 V RMS, 4: >70
Input sensitivity: 2 �v 15 V RMS
Input impedance: 15k .
LOAD IMPEDANCE (MIN):
. Ch: 1-2-3-4-5 2.
MAX POWER 530 W
OUTPUT POWER (RMS) @ 12.0 € 14.4 VDC, 1% THD:
. 5 Ch @ 4: 20 W x 2 + 50 W x 2 + 150 W x 1
. 5 Ch @ 2 40 W x 2 + 90 W x 2 + 270 W x 1
OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
. 5 Ch @ 4: 25 W x 2 + 60 W x 2 + 190 W x 1
. 5 Ch @ 2: 50 W x 2 + 115 W x 2 + 350 W x 1
