Highlights

• 150W RMS x 4 @ 4 Ohms – solid power for demanding speakers and midbass
• 4x230W RMS @ 2 Ohms / 2x460W RMS bridged @ 4 Ohms – maximum flexibility
• Frequency response 10 Hz – 45,000 Hz: open and detailed soundstage across the entire spectrum

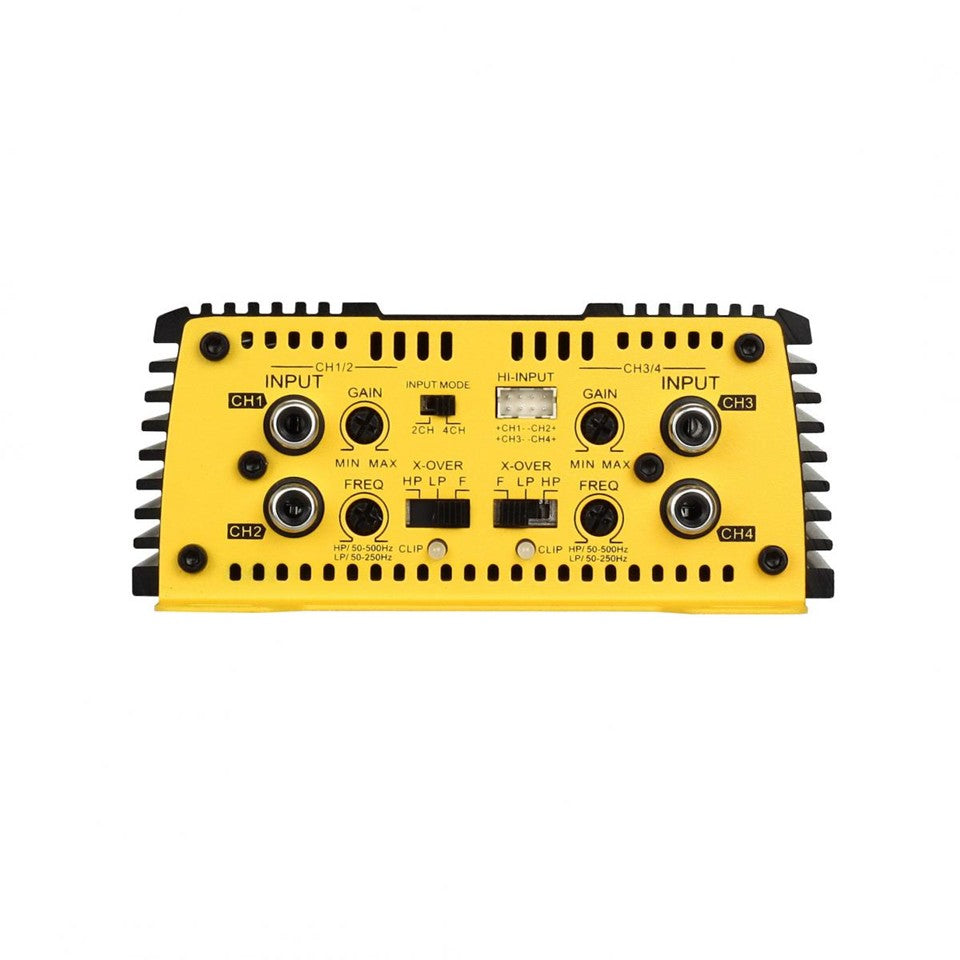

• Adjustable HP (50–500 Hz) + LP (50–250 Hz) filters for precise per-channel tuning
• THD 0.15% and SNR 90 dB: clean and stable sound even under heavy load
• Ultra-compact size 220 x 120 x 52 mm – easy installation even in tight spaces

Description

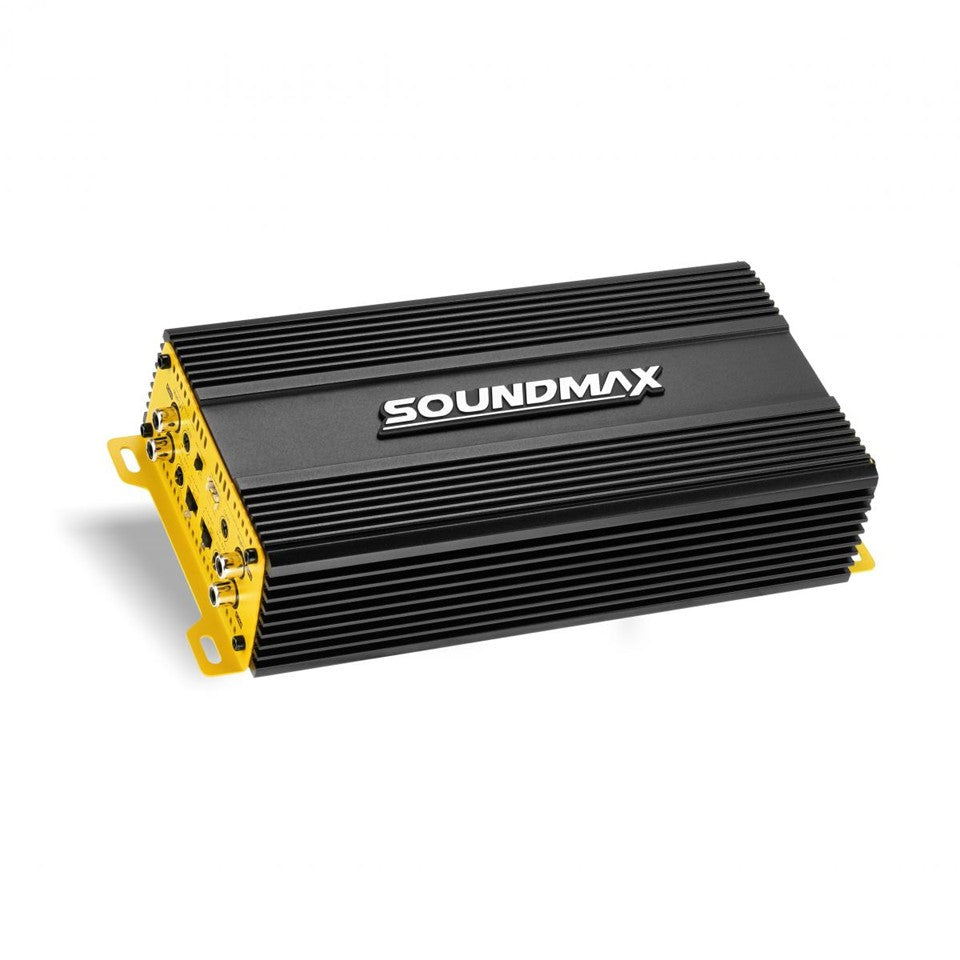

The Soundmax SX-LX4150.4D is a compact 4-channel amplifier designed to deliver strong and controlled power for speakers and midbass. With 150W RMS per channel at 4 Ohms in a casing measuring only 220 x 120 x 52 mm, it offers an exceptional power-to-size ratio. Its ability to go up to 4x230W @ 2 Ohms and 2x460W in bridged mode makes it a versatile solution for many setups.

• Adjustable high-pass filter: 50 – 500 Hz
• Adjustable low-pass filter: 50 – 250 Hz
• Input sensitivity: 250mV – 8V – compatible with OEM and aftermarket sources

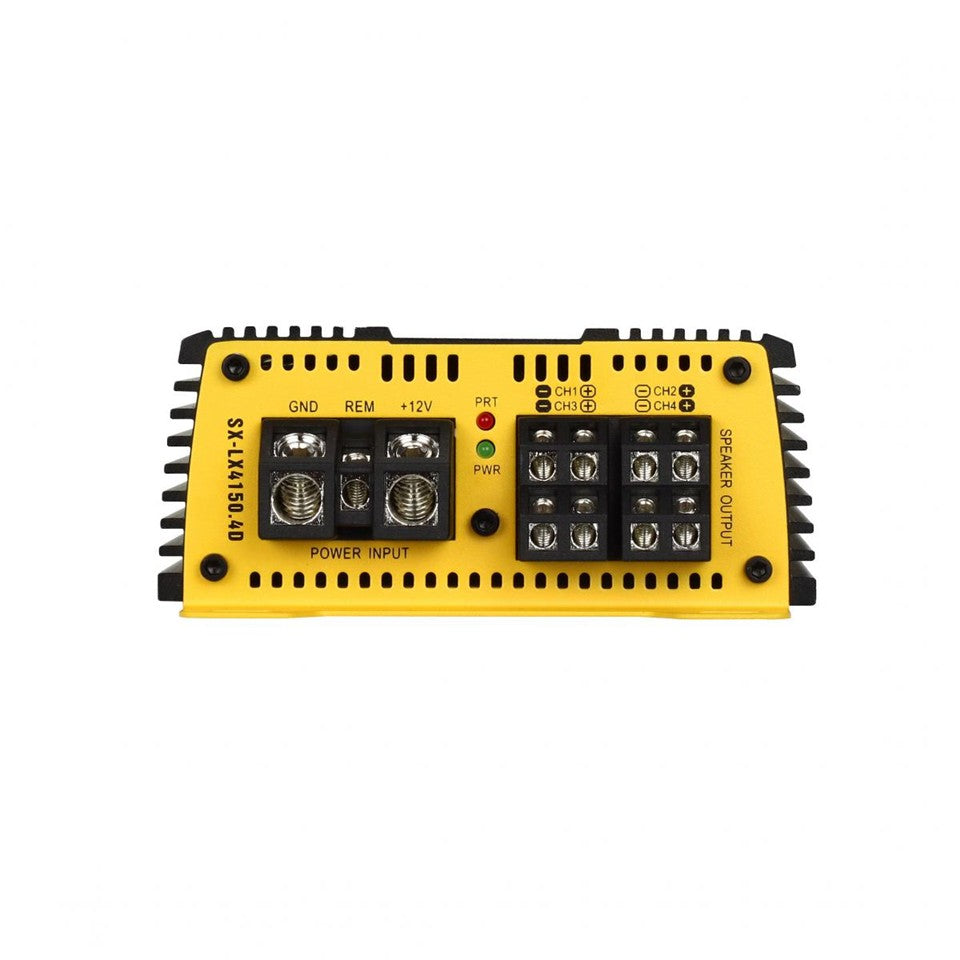

• Fuses: 2 x 40A for stable and reliable power supply
• Dimensions: 220 x 120 x 52 mm – installs anywhere, even under a seat
• Available at Sound Auto Concept, your car audio specialist.

Technical Specifications

Why choose it?

• 150W x 4 in a 220x120x52 mm casing: the best power-to-size ratio in the 4-channel range
• 4x230W @ 2Ω or 2x460W bridged: total versatility for all configurations
• Adjustable HP + LP filters: perfect adaptation to speakers and midbass
• THD 0.15% and SNR 90 dB: premium audio quality in a compact form factor

⚠️ IMPORTANT - INSTALLATION: It is IMPERATIVE to connect this amplifier to the impedance recommended by the manufacturer and to use the recommended wiring size. For amplifiers over 2000W RMS, the vehicle's original battery is no longer sufficient. It is strongly advised to adapt the electrical supply (additional battery, reinforced alternator) to the amplifier's consumption to avoid any risk of damage and ensure optimal performance. WARNING: Any voltage drop below 12V can damage the product.
