Description
Description
Highlights
- High-quality 2-in-1 power distribution block
- Mini ANL fuse holder + Integrated ground block
- Splash-proof (water-resistant)
- 4 mini ANL fuse slots
- 4 inputs: 50 mm² / 35 mm²
- 8 outputs: 20 mm²
- 2 x 50 mm² fused inputs (4 x 20 mm² outputs on positive side)
- 2 x 50 mm² unfused inputs (4 x 20 mm² outputs on ground side)
- Soft rubber cover for quick replacement
- Weather-resistant plastic body
- Adjustable rubber O-rings
- Internal mounting sleeves for optimal retention
- Screw fixing (holes on the bottom)
- Dimensions: 110 x 90 x 36 mm
- Compatible with all mini ANL fuses
- Fuses not included
- STAGE 2 Four Connect series
Description

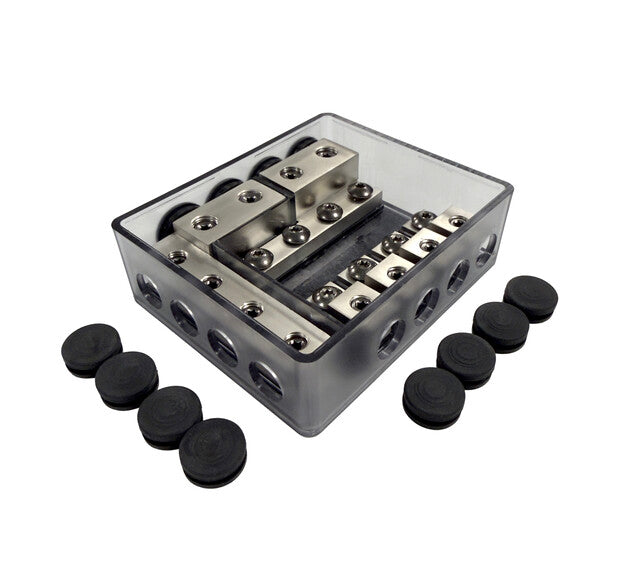

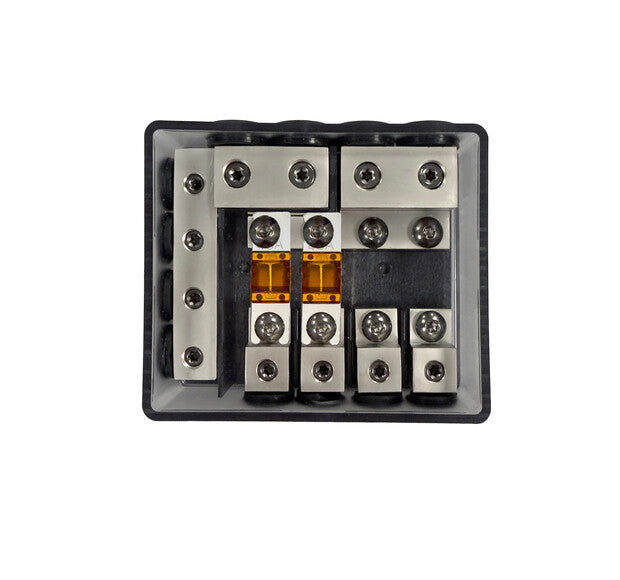

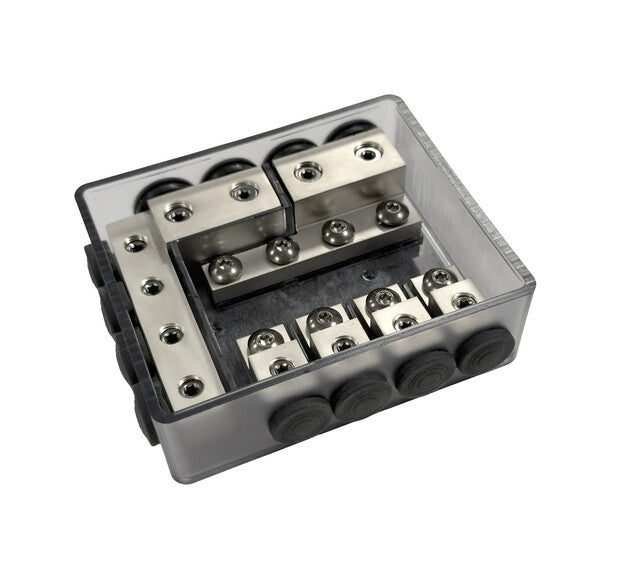

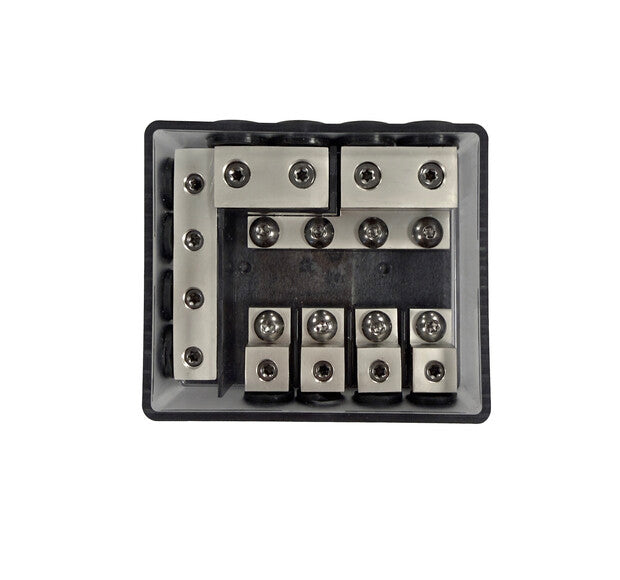

High-quality splash-proof mini-ANL fuse holder. It features 4 slots for mini-ANL fuses. This product integrates a power distribution block and a ground distribution block.

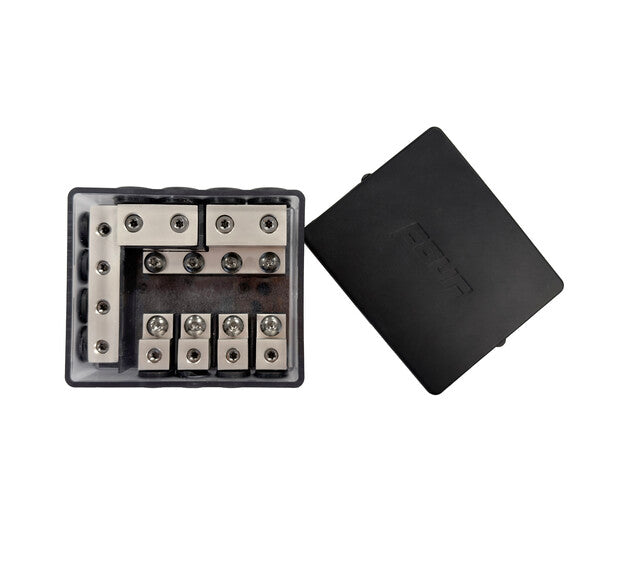

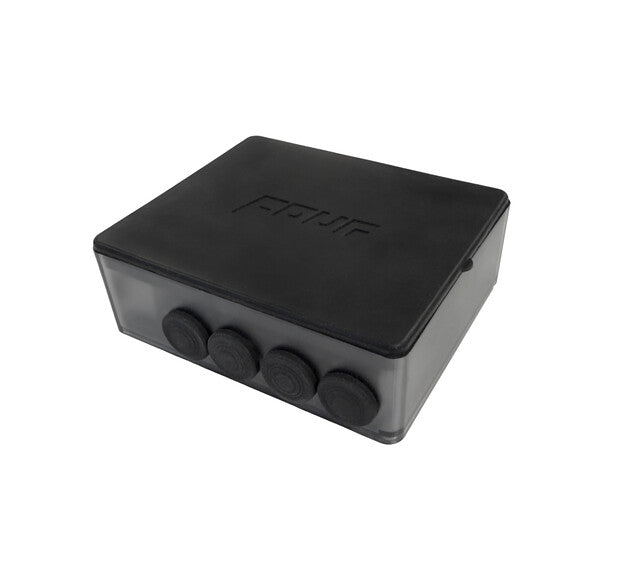

The fuse holder is equipped with a soft rubber opening cover, making fuse replacement quick and easy. Its body is made of weather-resistant plastic, and its bottom mounting holes allow for screw installation.
Two of the 50 mm² inputs on the fuse holder are for fuses and can be split into 4 x 20 mm² outputs if needed (these connectors are designed for positive currents).
The other two 50 mm² inputs are dedicated to grounding (the ground block does not have fuse slots). The ground block has 4 x 20 mm² outputs.
The cable inlets/outlets are equipped with adjustable rubber O-rings to fit different cable sizes. Internal mounting sleeves ensure optimal cable retention.
Technical Specifications
| Reference | 4-600424 |
| EAN | 6430042129515 |
| Series | STAGE 2 Four Connect |
| Type | Power Distribution Block (Fuse Holder + Ground Block) |
| Fuse Holder Block (Positive Side) | |
| Number of Fuse Slots | 4 |
| Fuse Type | Mini ANL (not included) |
| Fused Inputs | 2 x 50 mm² / 35 mm² |
| Positive Outputs | 4 x 20 mm² |
| Grounding Block (Negative Side) | |
| Ground Inputs | 2 x 50 mm² / 35 mm² |
| Ground Outputs | 4 x 20 mm² |
| Ground Side Fuses | No (no fuse slots) |
| General Features | |
| Total Inputs | 4 x 50 mm² / 35 mm² |
| Total Outputs | 8 x 20 mm² |
| Water Resistance | Splash-proof |
| Cover | Soft Rubber |
| Body | Weather-resistant Plastic |
| Seals | Adjustable Rubber O-rings |
| Internal Sleeves | Mounting for optimal cable retention |
| Fixing | Screw fixing (holes on the bottom) |
| Dimensions | 110 x 90 x 36 mm (L x W x H) |
Why Choose It
- 2-in-1 solution: fuse holder + ground block in one housing
- Four Connect Quality: Finnish brand renowned for car audio accessories
- Splash-proof: protection against moisture for maximum reliability
- 4 fuse slots: independent protection for 4 positive circuits
- Integrated ground block: centralization of grounds for a clean installation
- Soft rubber cover: quick and easy fuse replacement
- 4 x 50/35 mm² inputs: 2 for positive with fuses + 2 for ground without fuses
- 8 x 20 mm² outputs: 4 protected positive + 4 ground for complete distribution
- Adjustable O-rings: perfect adaptation to different cable cross-sections
- Mounting sleeves: optimal retention and secure connections
- Weather-resistant body: durability in automotive environment
- Screw fixing: stable and secure installation
- Compatible with all mini ANL fuses: flexibility for different amperages
- Professional installation: complete solution for multi-amplifier audio systems
Documentation
Compatible Cable Sizes:
- Inputs: 4 x 50 mm² / 35 mm²
- Outputs: 8 x 20 mm²
Configuration:
- Positive side: 2 x 50 mm² inputs with 4 mini ANL fuses → 4 x 20 mm² outputs
- Ground side: 2 x 50 mm² inputs without fuses → 4 x 20 mm² outputs
Fuses: Compatible with all mini ANL fuses (not included)
Installation: Screw fixing via holes located on the bottom of the housing
