Description
Description
Features
- Analog Devices™ DSP chip, 32-bit, 294 MHz, 96 kHz Full HD audio
- AKM Velvet Sound™ 32-bit A/D, 32-bit D/A signal converter
- HP/LP/BP at 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps
- Up to 248 output equalizers, 120 input equalizers (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps)
- Input mixer, subwoofer control, priority input mode for digital input signals
- Input sensitivity: low level 1~6V/RMS, high level 1~15 or 15~45V/RMS
- Signal-to-noise ratio (A-weighted): analog input 106 dB, digital input 111 dB
- Distortion factor: Analog input < 0.0015%, Digital input < 0.0009%
- REM OUT function for external devices, MODE switching input for e.g. hoods (Preset Auto Switch)
- Optional accessories: BT-D ( Bluetooth® module ), RC-DQ (LCD remote control)
Technical data
6-channel digital sound processor

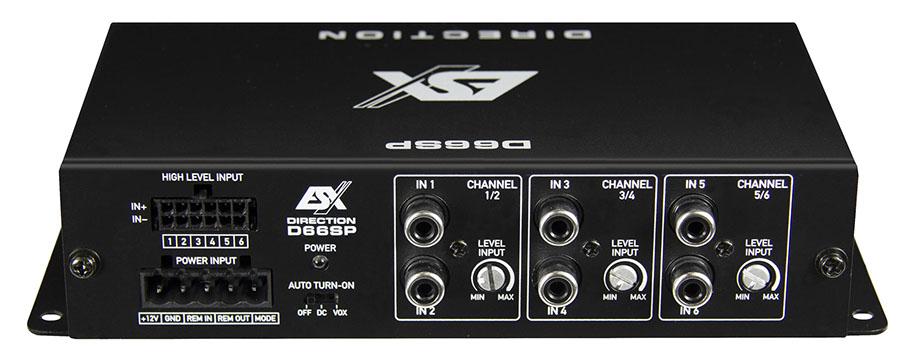

6 x RCA inputs, balanced
6 x high level inputs (via Molex)
1 x USB socket for PC software
1 x RJ45 socket for remote control

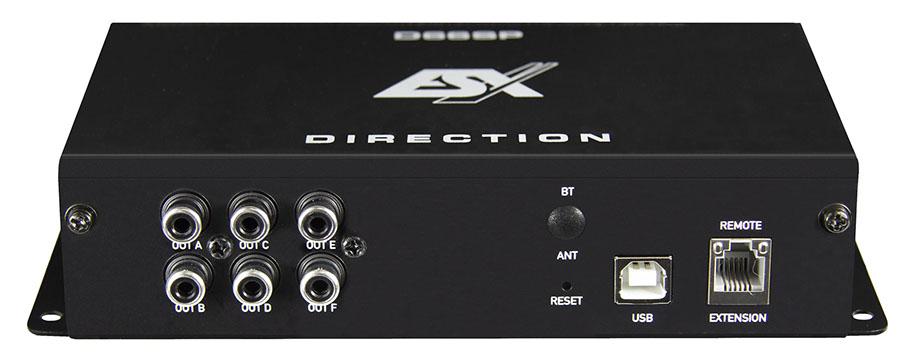

6 RCA outputs at 6 V RMS
Dimensions 105 x 40 x 185 mm
ESX D66SP
