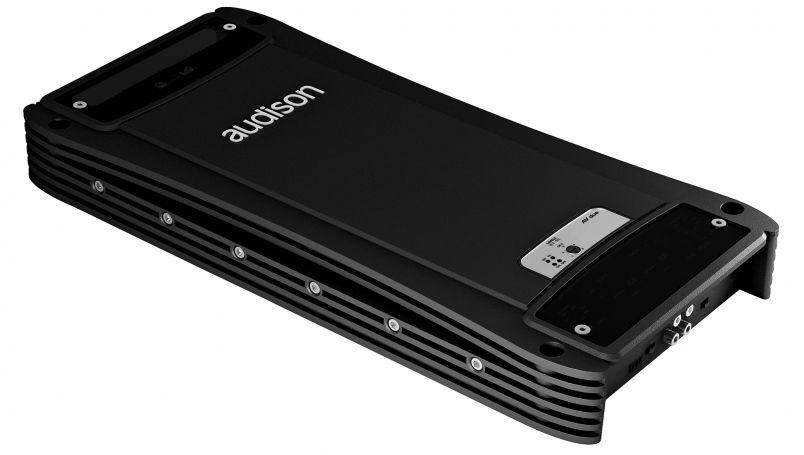

AUDISON AVDUE 2-channel amplifier

AUDISON AV DUE Description AUDISON AV DUE AV reason is a powerful stereo amplifier. The power supply section and last stage, designed to operate also in mono and tri-mode, ensure very high output current, with powers up to 900 W (RMS). AMP constantly checks the system operating status and the ArtTM function allows automatic turn-on / off when a remote control signal is not available from the source. You can use the volume of VCRA remote control by connecting it to the special SUB VOL jack when driving the subwoofer in mono. There are endless manipulation possibilities, for every type of installation. AV reason also allows you to replace the analog input card with a digital one (AV IN bit).

Power supply Supply voltage: 11 ÷ 15 VDC

Idling current: 1.7 A

Idle current when off: 0.02 mA

Consumption @ 14.4 VDC (Max Power Musical): 65 A

Amplifier stage Distortion - THD (1 kHz @ 4O): 0.04%

Bandwidth (-3 dB): 4 ÷ 60k Hz

S/N Ratio (A @ 1V weighted): 100 dBA

Damping factor (1k Hz @ 4O): 120

Input sensitivity: 0.3 ÷ 5 V RMS

Input impedance: 15k O

Speaker-In sensitivity: 1.4 ÷ 24 V RMS

Speaker-In impedance: 5k O

Minimum load impedance: 2O

Rated power (RMS) @ 12 VDC, THD 0.3%, 4O: ​​210 W x 2

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%: 2 Ch: 260 W x 2 (4O) 2 Ch: 450 W x 2 (2O) 1 Ch: 900 W x 1 (4O)

INPUTS / FILTERS SIGNALS Inputs: Pre In / Speakers IN Outputs: Pre Out Full Range Filters (Full / Hi-Pass / Lo-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB / ocT Filter (Lo-Pass 24 dB mono): 50 ÷ 500 Hz @ 24 dB / oct

OTHER FUNCTIONS Distance: 7 ÷ 15 VDC - 1 mA

Distance: 12 VDC - 50 mA

Fuse (strip type): 60 A

Distance adj volume SUB. (With Lo-Pass 24 dB): (-50 ÷ 6) dB

Speakers in turn on (ART): selectable

DIMENSIONS Max size (mm / inches): 220 x 470 x 58 / 8.66" x 18.50" x 2.28"
