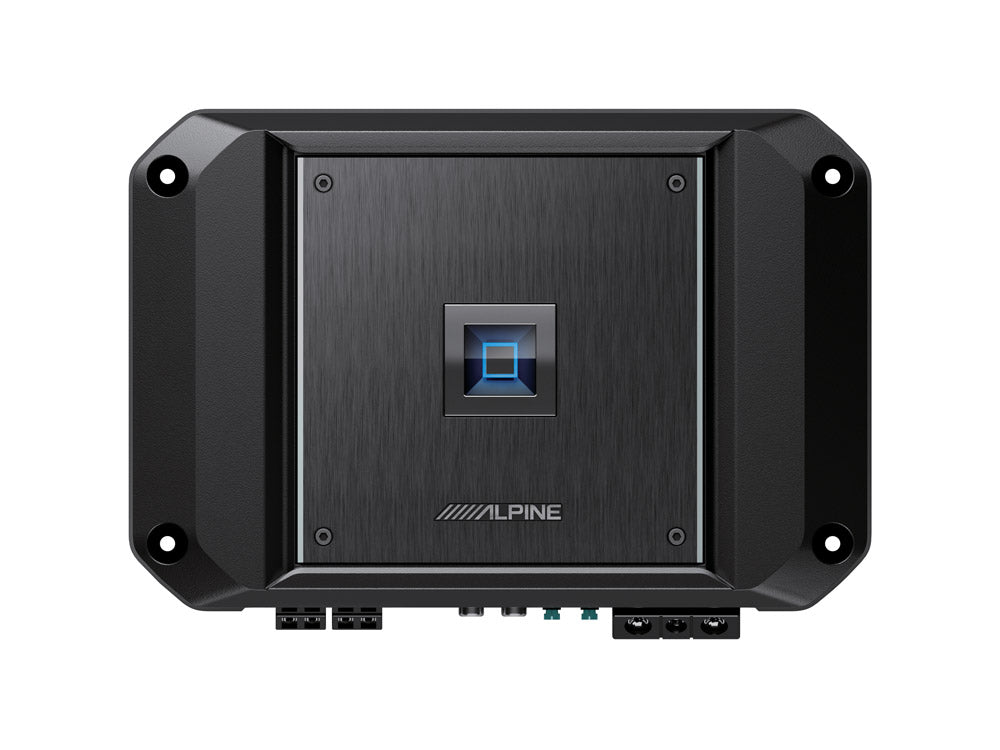

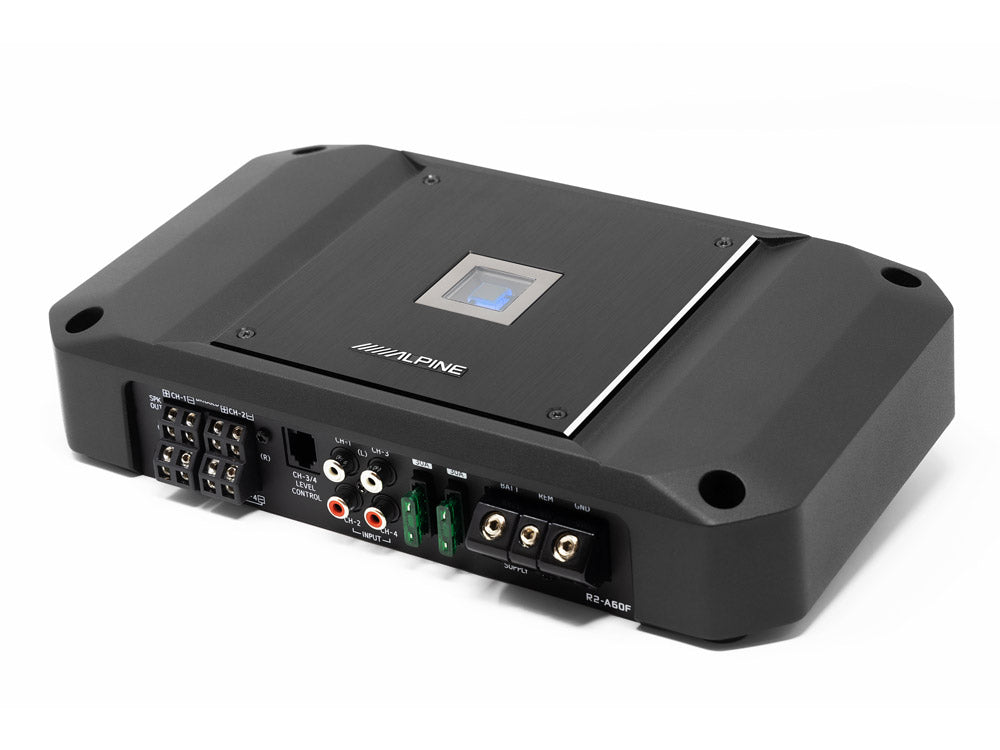

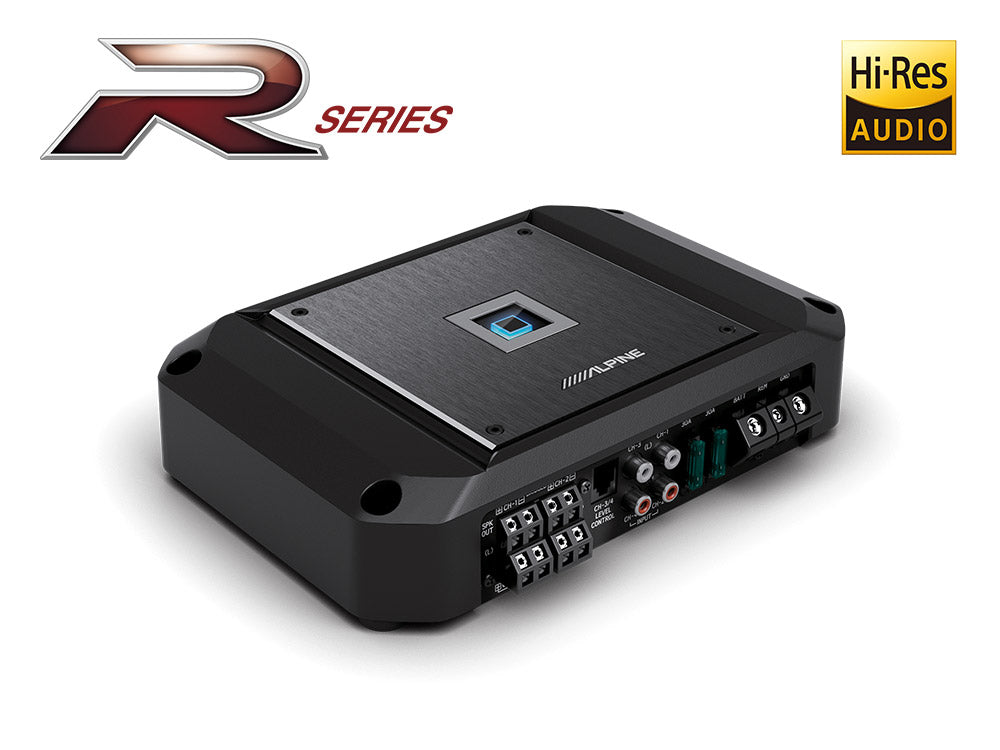

Alpine R2-A60F Amplifier – Power and Audio Precision
The Alpine R2-A60F is a 4-channel Class-D amplifier offering a maximum power of 1200 W in a compact size. Its digital design ensures optimal efficiency, while its adjustable filters, bass equalizer, and remote control guarantee precise and customizable sound.
General Features
-
Amplification: Class-D (digital)
-
Channel configuration: 4 / 3 / 2 channels
-
Compact installation for space-saving
-

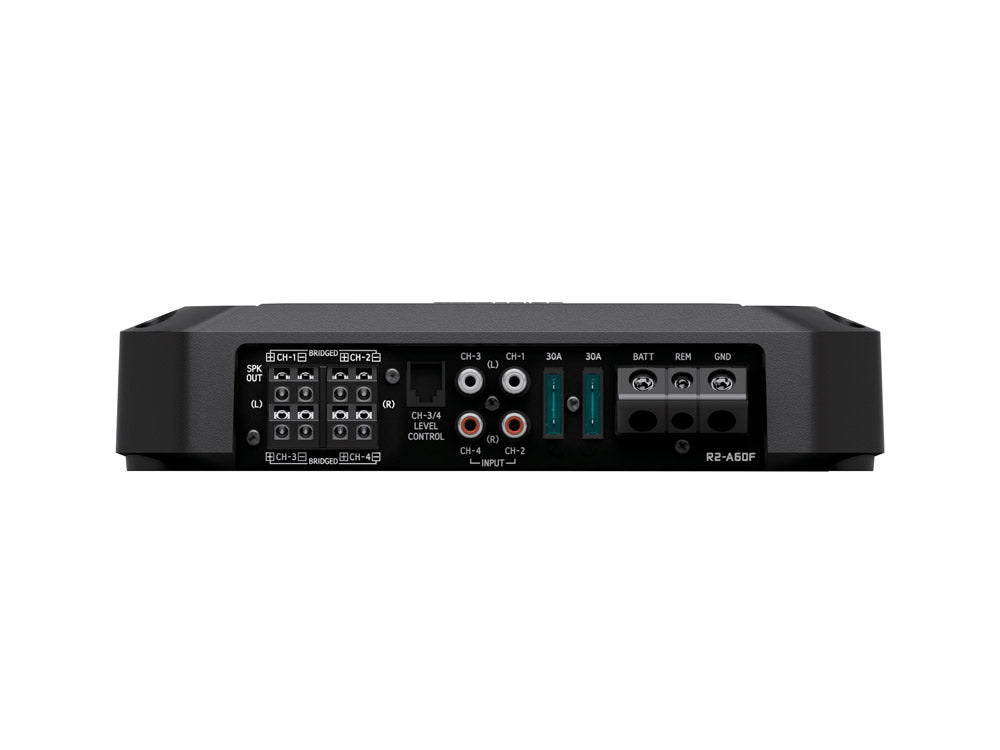

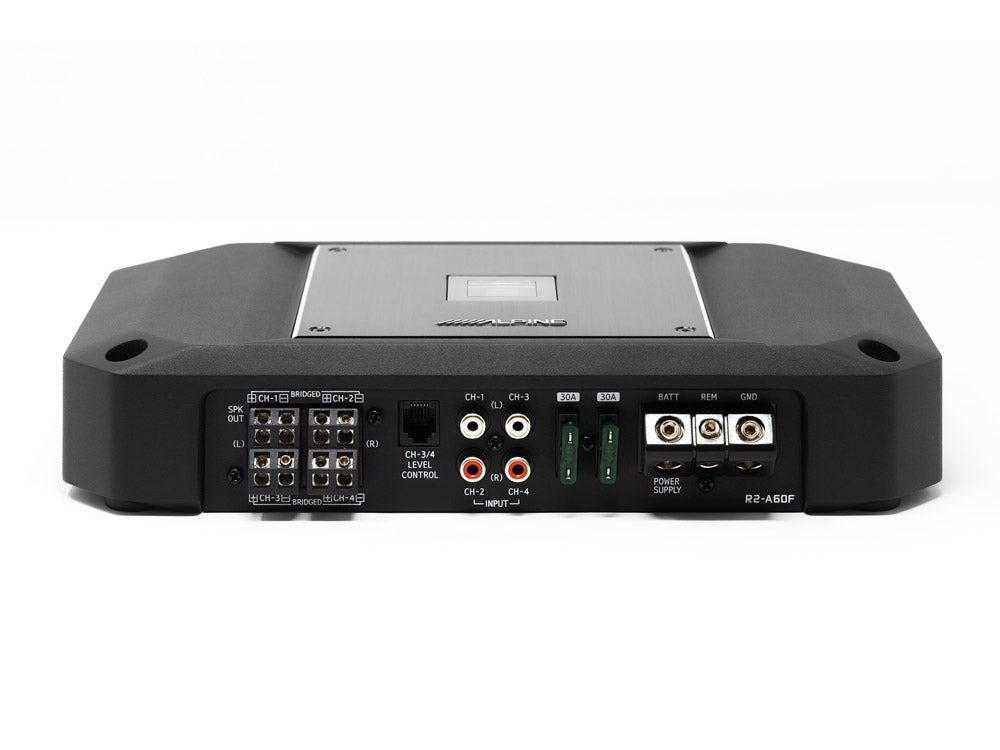

Screw terminals for speaker and power cables
-
Top panel controls for gain and settings
-
Integrated thermal control with protection
-
LED power indicator
-
Speaker input with remote activation
-
Filter: LPF, HPF, HPF-HI, and adjustable bandpass filter
-
Adjustable gain control
-
Bass equalizer
-
Remote bass control via RUX-KNOB2 (channels 3+4 bridged)
RMS and Maximum Power
-
Total maximum power: 1200 W
-
Per channel at 2 Ω, 14.4V: 4 x 150 W RMS (≤1% THD+N)
-
Per channel at 4 Ω, 14.4V: 4 x 100 W RMS (≤1% THD+N)
-
Bridged at 4 Ω, 14.4V: 2 x 300 W RMS
Settings and Audio Performance
-
Variable HPF/LPF filter: 50 – 400 Hz (-12 dB/oct)
-
Variable HPF-H filter: 400 Hz – 6 kHz
-
RCA input sensitivity: High 0.5 – 10 V / Low 0.2 – 4 V
-
High-level input with automatic power-on
-
Recommended cable size: AWG 4 (power), AWG 8 (speaker)
-
Frequency response: 10 Hz – 45 kHz
-
THD+N (@10 W, 4 Ω): <0.03%
-
Damping factor: >100
Dimensions and Weight
-
Heatsink (W x H x D): 282 × 55 × 165 mm
-
Weight: 3.3 kg
Highlights
-
Compact and powerful 4-channel amplifier
-
Digital Class-D for maximum efficiency
-
HPF/LPF and HPF-H filters for precise audio tuning
-
Bass EQ and remote control for custom sound
-
Easy installation with screw terminals and small footprint
-
