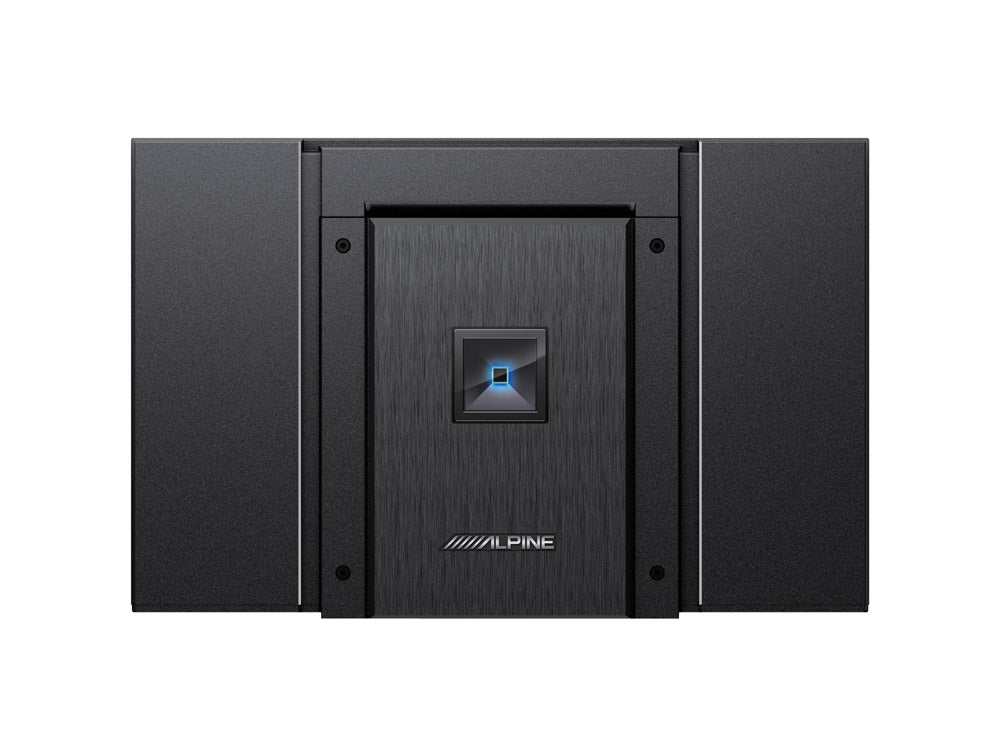

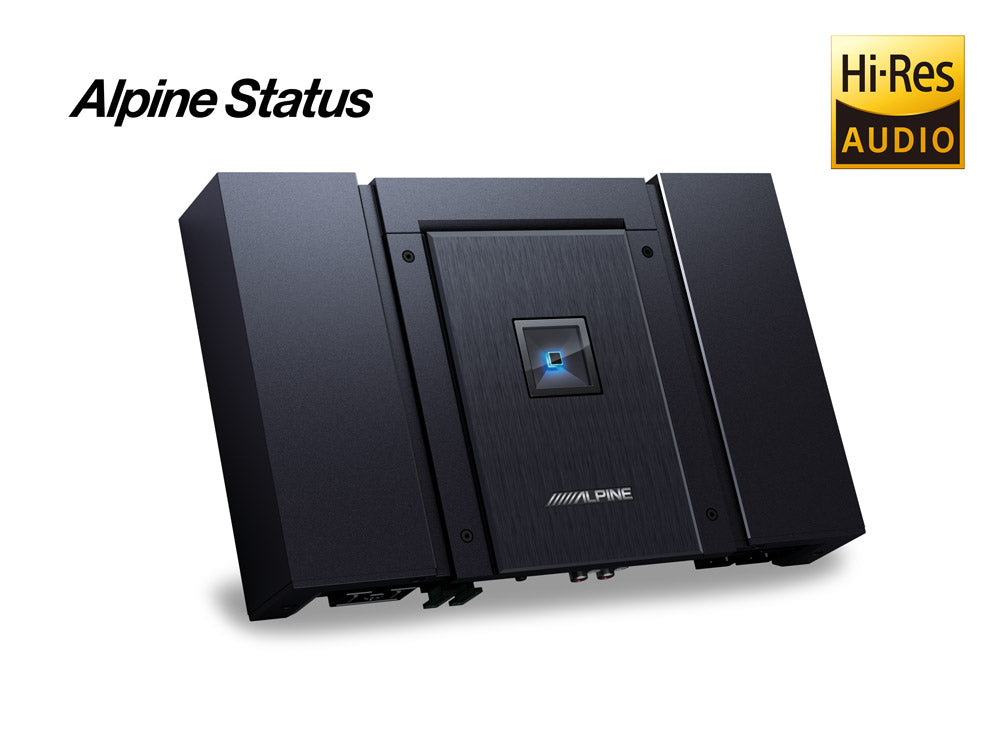

Alpine HDA-F60 Amplifier – 4/3/2 Channel Class D

Overview

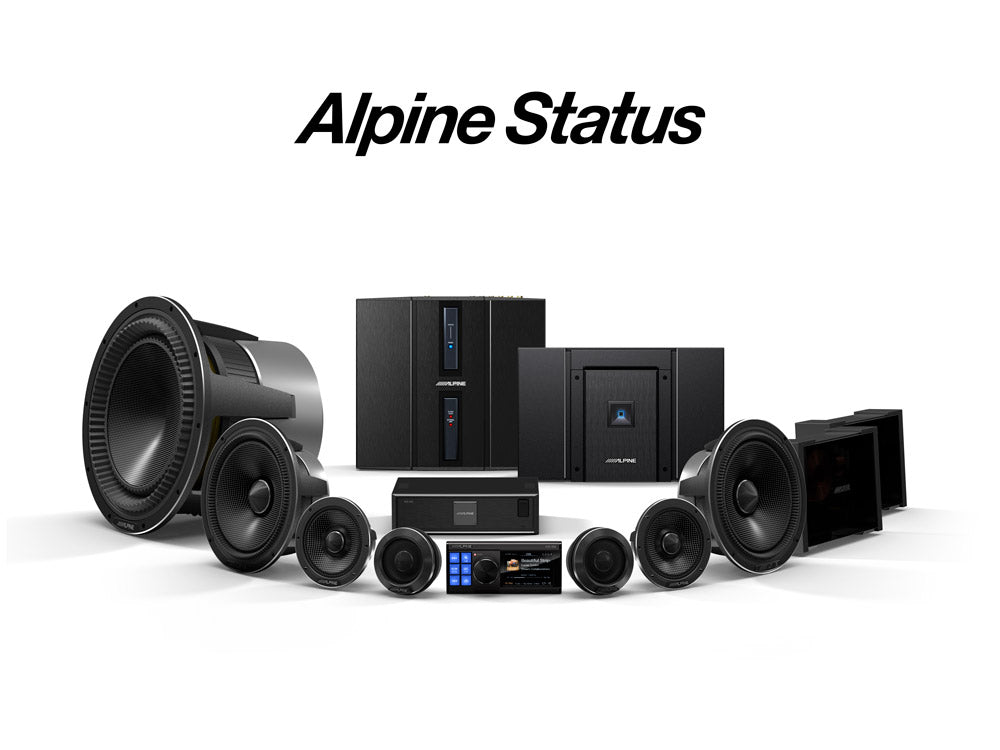

The Alpine HDA-F60 amplifier is part of the Alpine Status range, designed to deliver high power, minimal distortion, and exceptional sound clarity. Thanks to its Class D amplification technology and copper-plated chassis, it guarantees stable performance and excellent heat dissipation, even during prolonged use.

General Features

• Channel Configuration: 4 / 3 / 2 Channels

• Amplifier Type: Class D

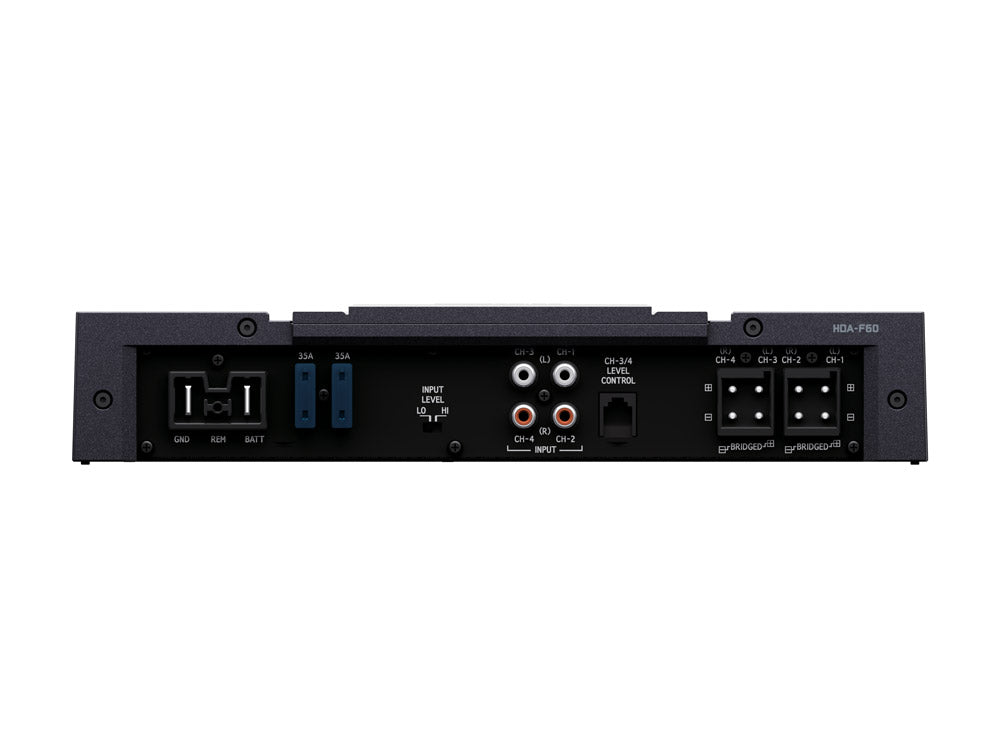

• Robust Power and Speaker Channel Connectors

• Copper-plated Chassis for Improved Thermal Management

• Black Circuit Board

• Top Control Panel Under Cover

• Non-stop Design (no fan)

• Integrated Thermal Protection

• One-sided Terminal for Simplified Installation

• Blue Power LED

• Compatible with Alpine RUX-KNOB2 Bass Controller (Subwoofer Channel)

Power and Performance (RMS Values)

• Per Channel at 2 Ohms (14.4V): 4 x 150 W

• Per Channel at 4 Ohms (14.4V): 4 x 100 W

• Bridged at 4 Ohms (14.4V): 2 x 300 W

Sound Settings

• Variable HPF Crossover: 50 – 400 Hz (-12 dB/oct)

• Input Sensitivity (RCA):

  • Hi: 0.5V – 10V

  • Low: 0.2V – 4.0V

• Frequency Response (+0 / -3dB at 1W into 4 Ohms): 10 Hz – 60 kHz

• THD+N (@10W into 4 Ohms): < 0.02 %

• Damping Factor (@10W / 4 Ohms / 100 Hz): > 500

Dimensions and Weight

• Width: 291 mm

• Height: 53.5 mm

• Depth: 189.5 mm

• Weight: 3.8 kg

Highlights

• Compact and powerful amplifier for high-end installations

• Faithful audio reproduction, with extremely low distortion

• Copper chassis for optimal thermal stability

• Compatible with RUX-KNOB2 bass level controller

• Ideal for stereo or subwoofer systems

Recommended Use

The Alpine HDA-F60 is designed for demanding audiophiles and car audio enthusiasts looking for controlled power, remarkable sound clarity, and discreet integration. Perfect for Alpine Status installations or any system requiring a reliable and high-performance amplifier.
