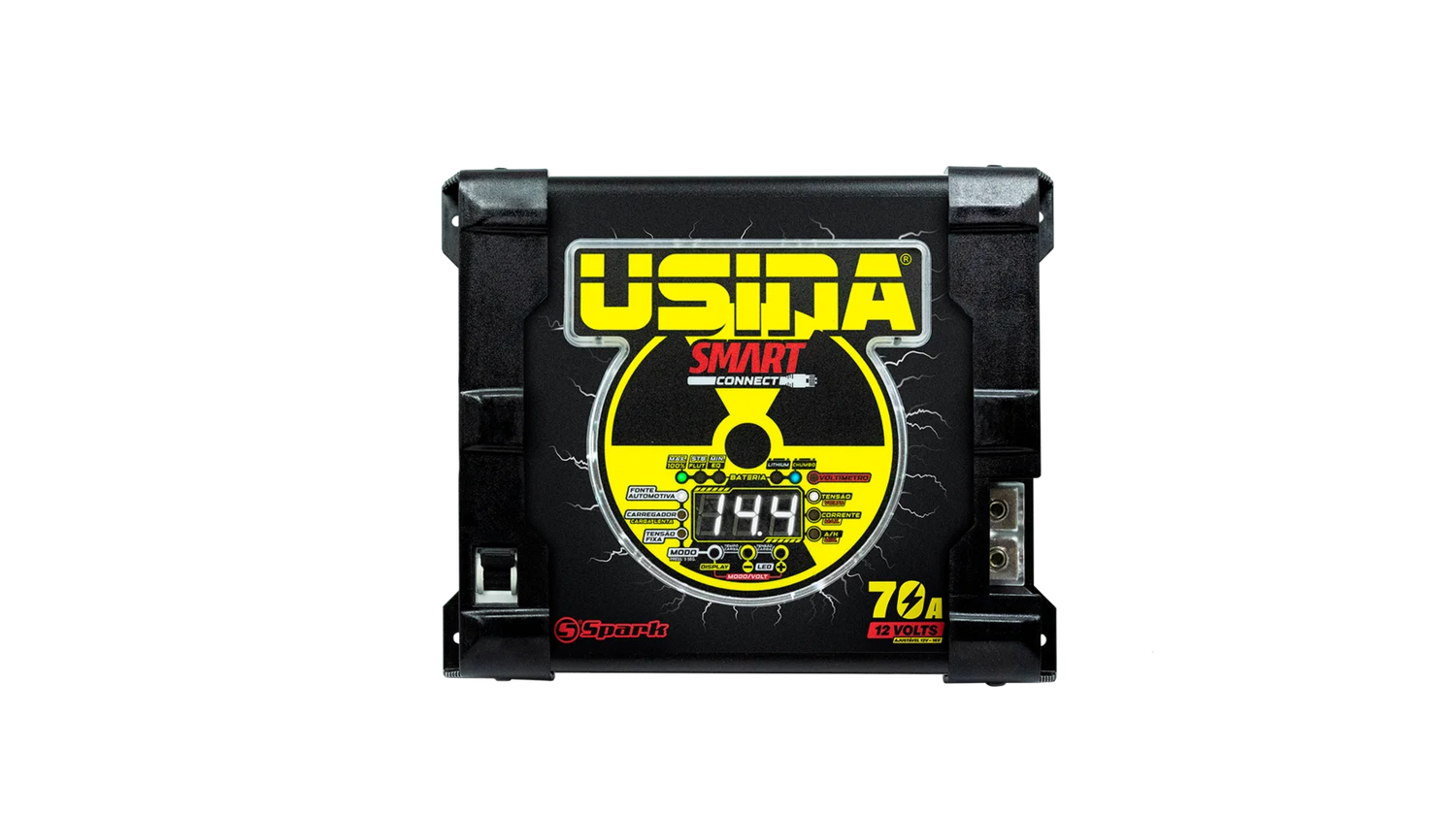

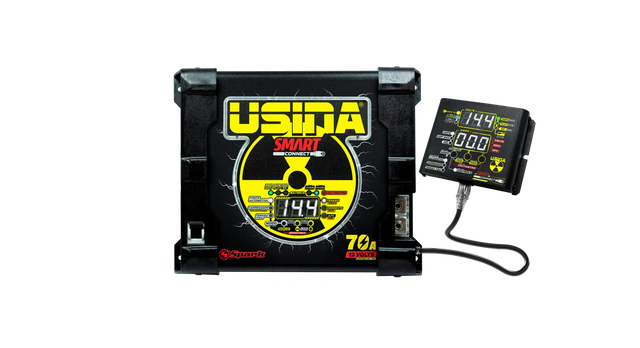

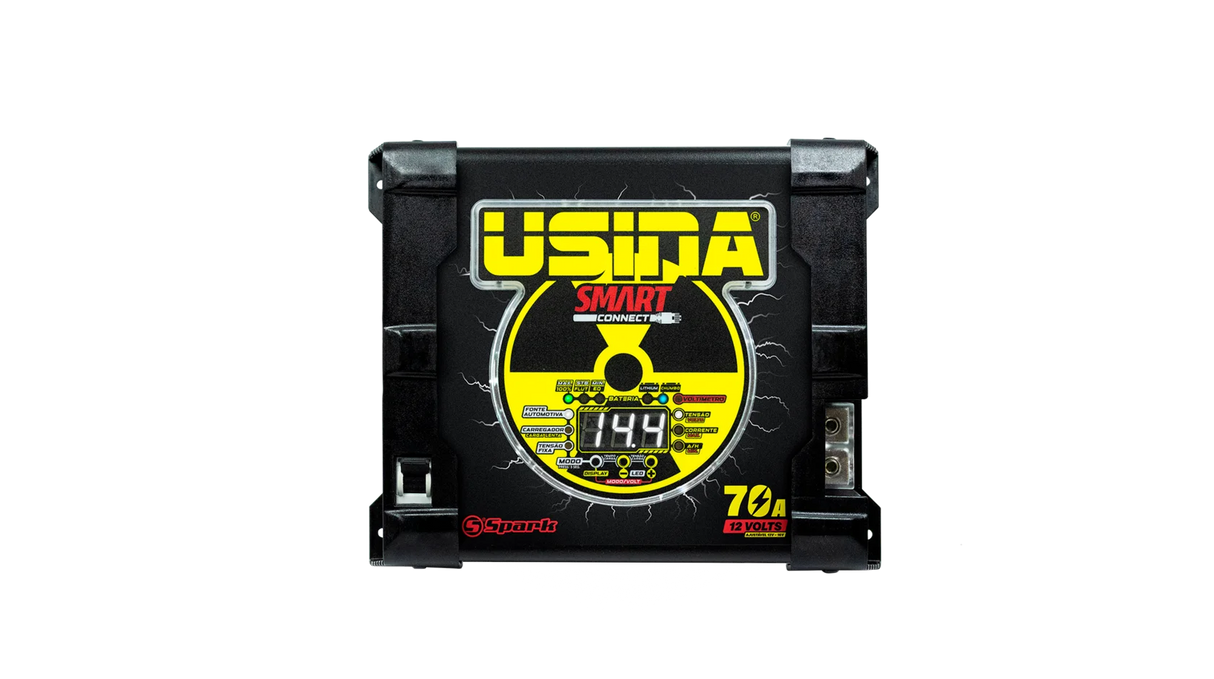

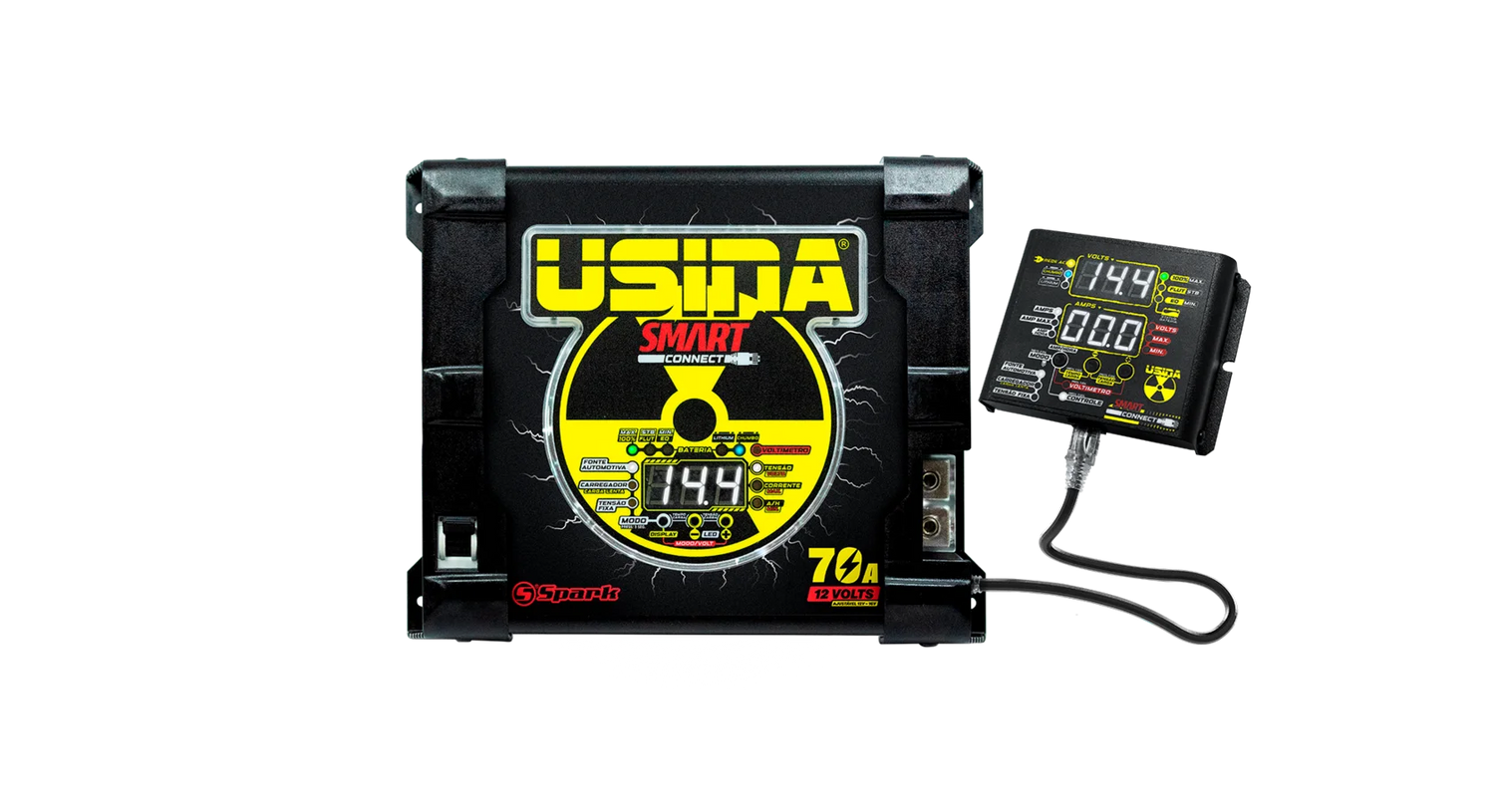

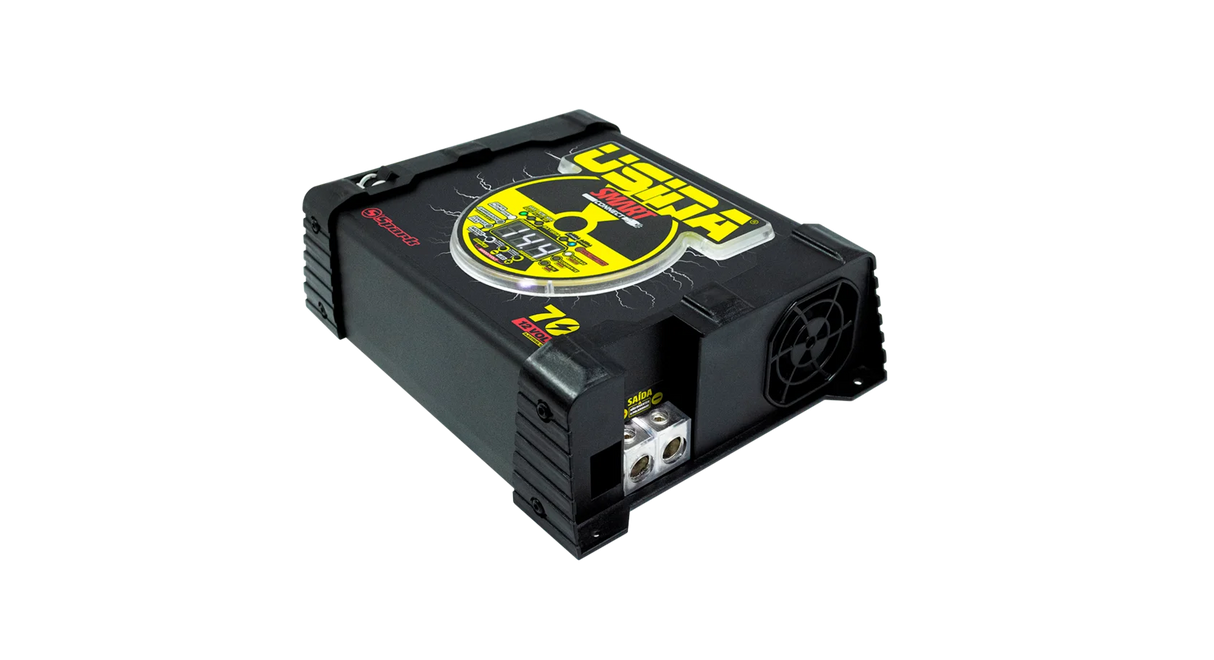

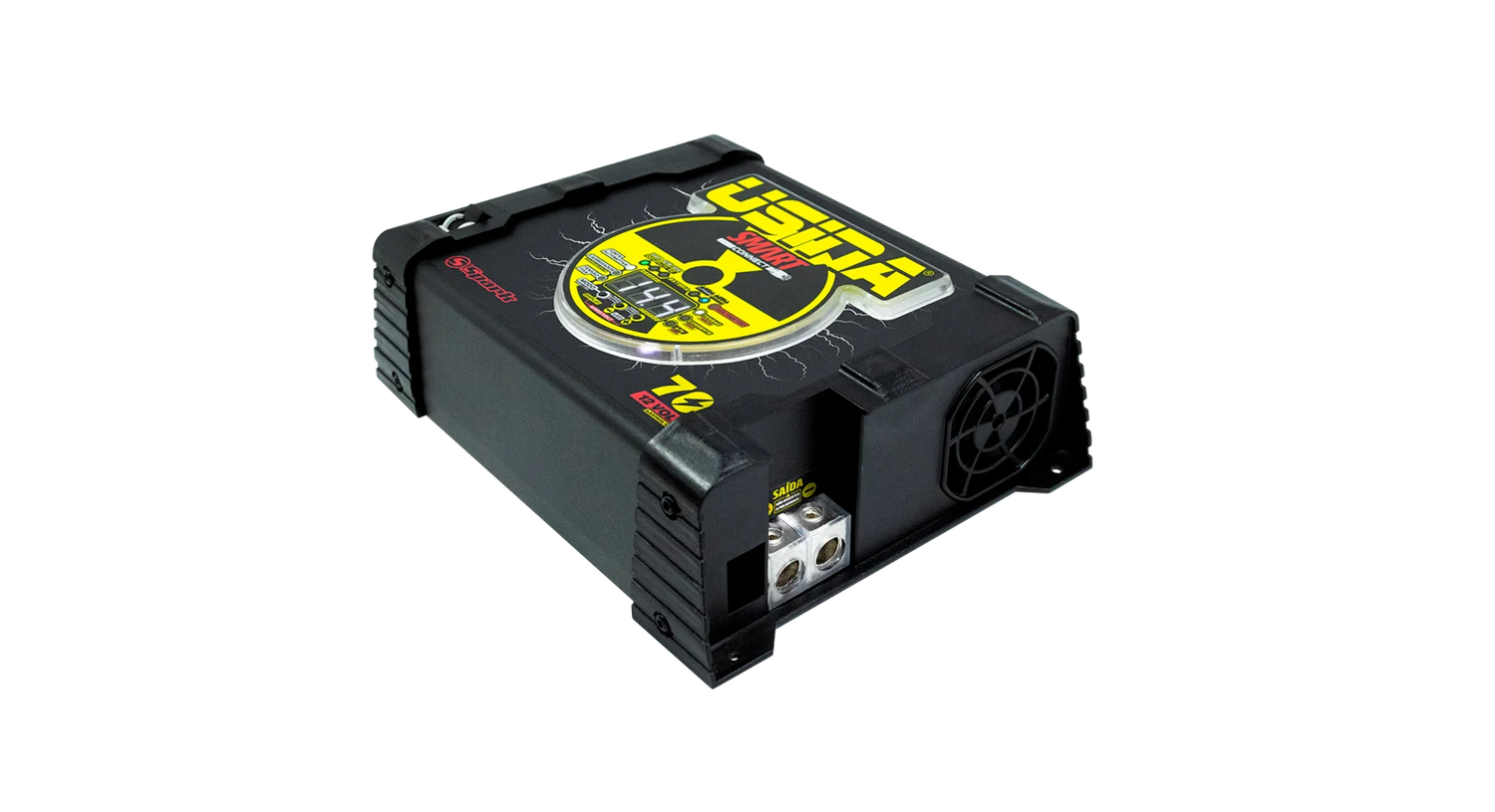

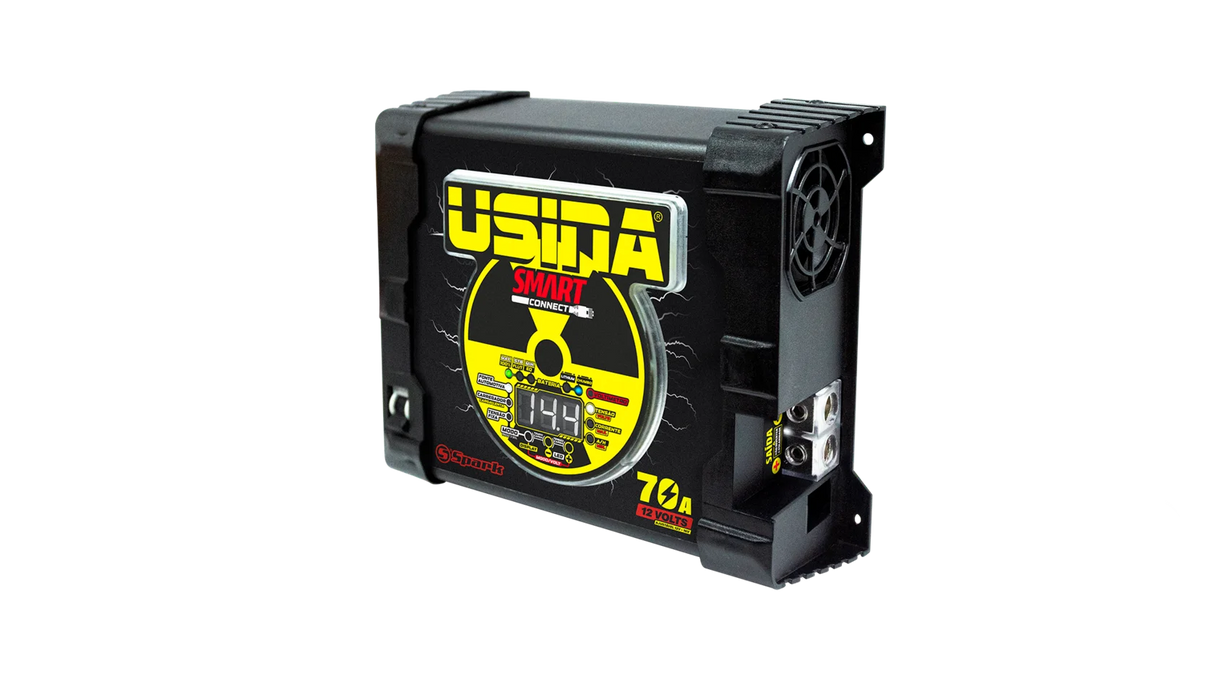

Usina Spark Smart connect 70A charger At Sound Auto Concept

Discover our high-performance power supply, perfect for your car audio and electronics needs. With an output power of 875 watts and an efficiency of 85%, it guarantees stable and efficient power for all your equipment. Its automatic dual-volt design and circuit breaker protection add to its safety and reliability.

Specifications:
Input voltage: Automatic bivolt
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @ 250Vac
Consumption 127Vac: 15A (maximum)
Consumption 220Vac: 8A (maximum)
Output voltage: 12V @ 16VDC (+-1%)
Output current: 70A @ 12.5Vdc (+-5%)*
Output Power: 875 Watts (maximum)**
Yield: 85%
Input Power: 1075 Watts (maximum)**
Input cable: 3x1.5mm² - 2P+T
Input protection: 16A circuit breaker
Output cable: 16mm²
Recommended extension: 2.5mm² (max 30 meters)
Weight: 1,950 kg
Approximate dimensions (LxWxH): 270mm x 200mm x 80mm***

*Current and power measured under resistive load
**Output power may vary depending on mains voltage and usage conditions
***Measurements relating to power supply dimensions may vary by approximately 2mm
