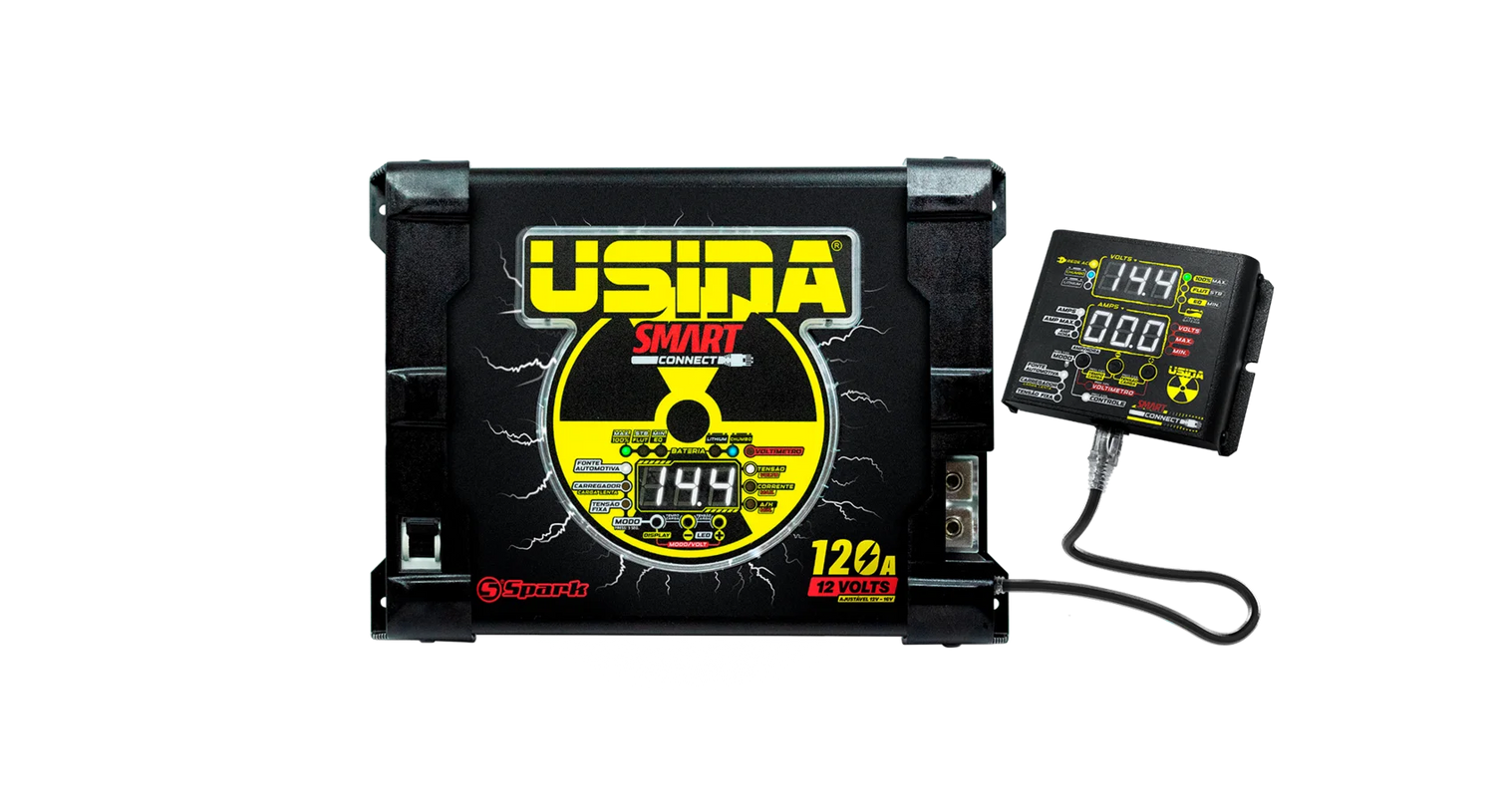

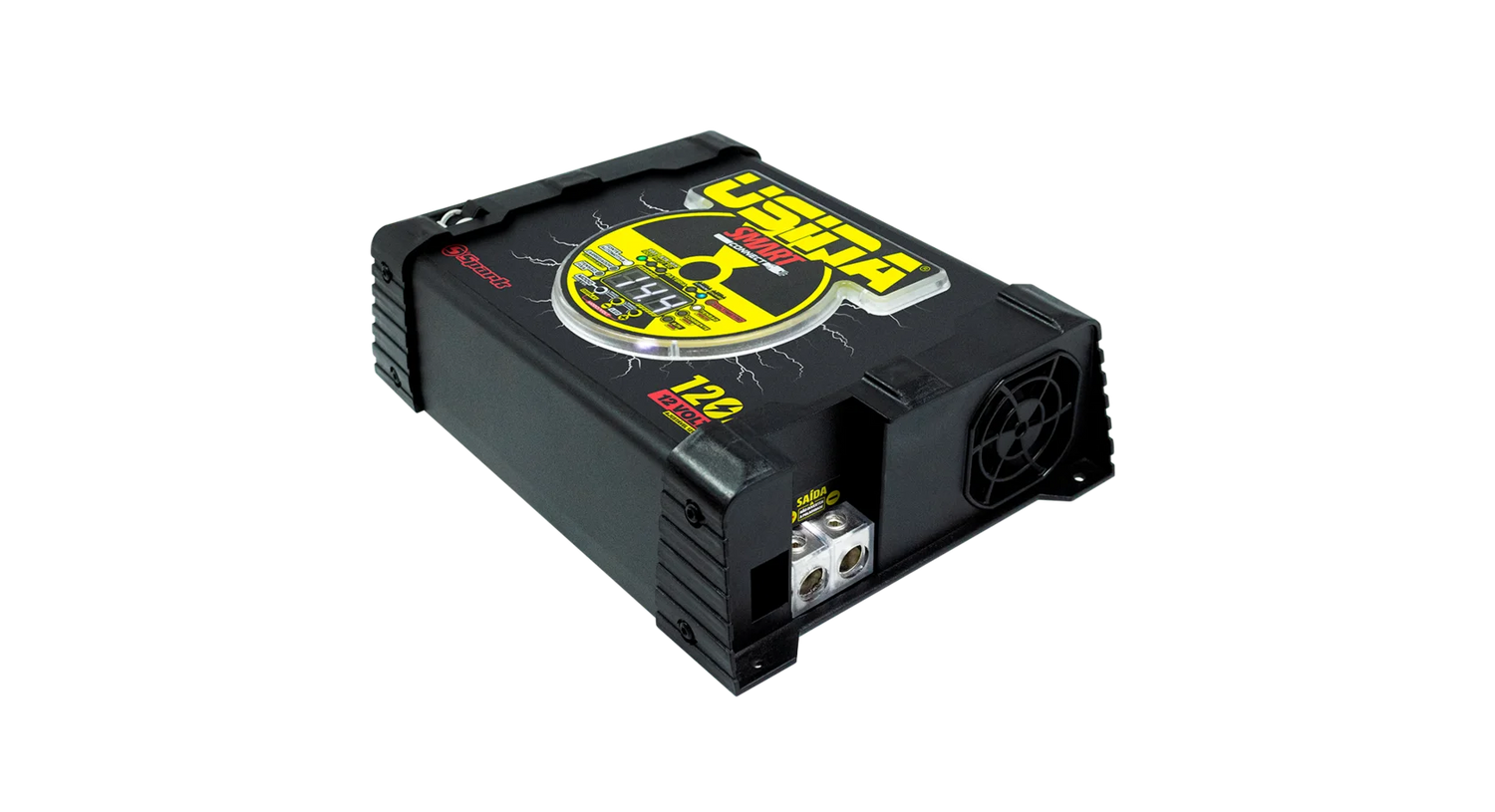

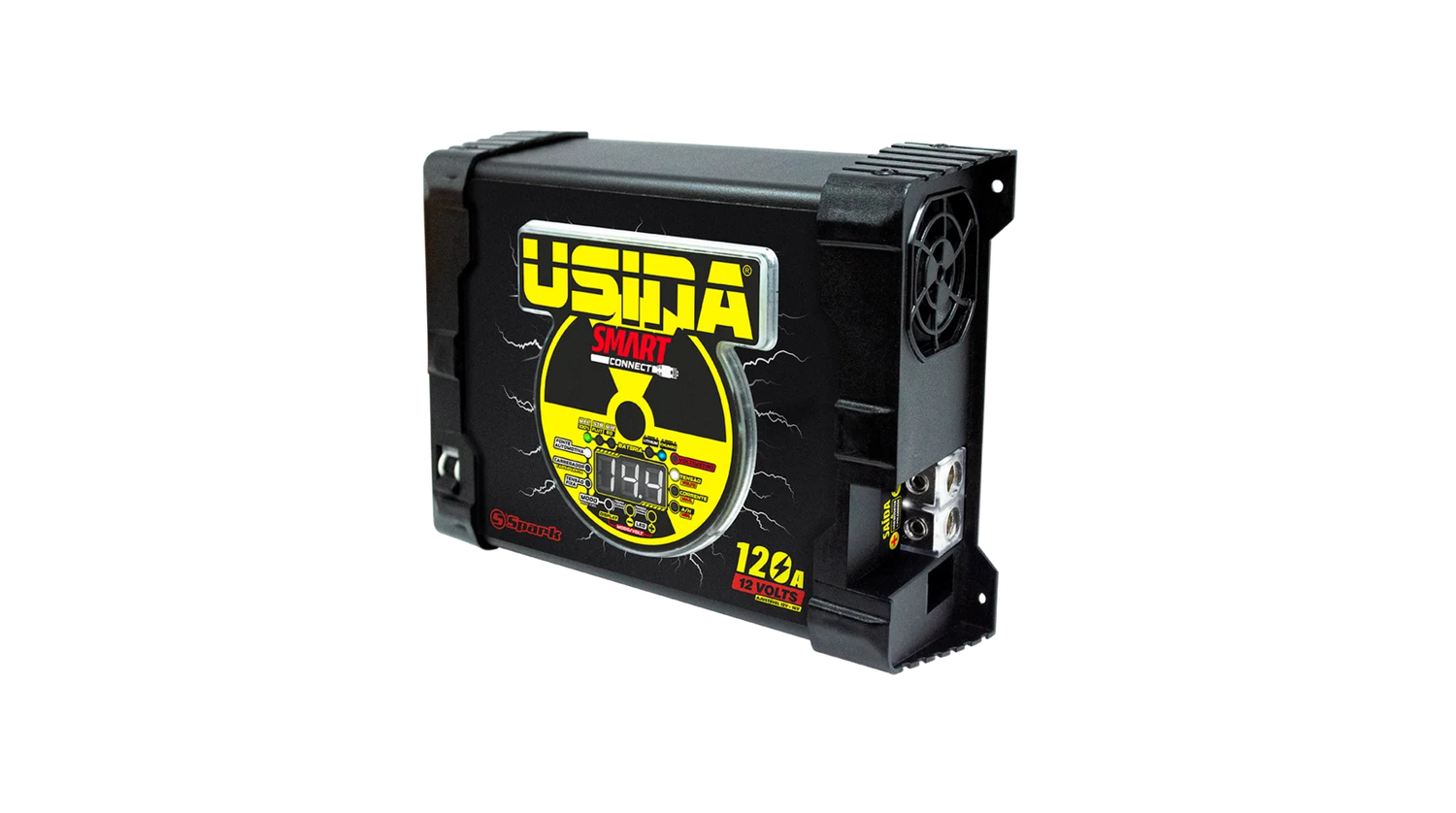

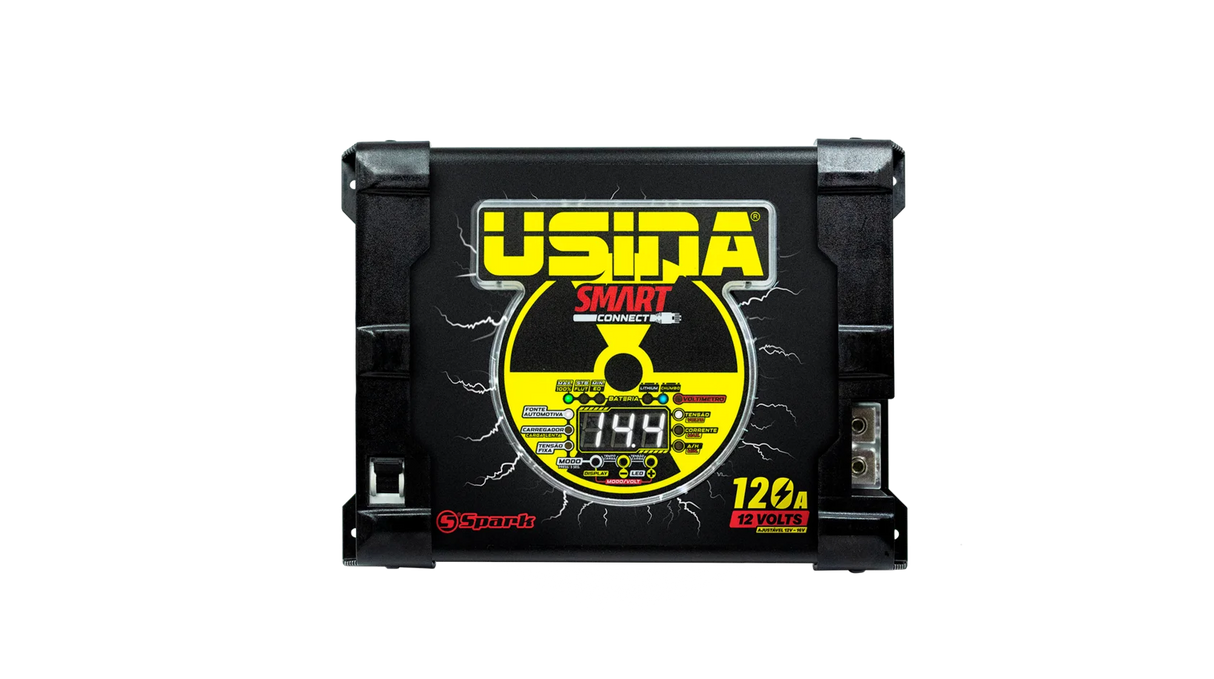

Usina Spark Smart connect 120A charger at Sound Auto Concept

Discover our high-performance power supply, ideal for car audio and electronics enthusiasts. With an output power of 1500 Watts and an efficiency of 85%, it provides stable and robust power for all your demanding equipment. Its automatic dual-volt design and 25A circuit breaker protection guarantee safety and reliability. Don't let power fail you; choose this power supply that transforms your audio expectations into reality!

Specifications:
Input voltage: Automatic bivolt
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @ 250Vac
Consumption 127Vac: 23A (maximum)
Consumption 220Vac: 13A (maximum)
Output voltage: 12V @ 16VDC (+-1%)
Output current: 120A @ 12.5Vdc (+-5%)*
Output Power: 1500 Watts (maximum)**
Yield: 85%
Input Power: 1800 Watts (maximum)**
Input cable: 3x1.5mm² - 2P+T
Input protection: 25A circuit breaker
Output cable: 25mm²
Recommended extension: 2.5mm² (max 30 meters)
Weight: 2,400 kg
Approximate dimensions (LxWxH): 300mm x 200mm x 80mm***

*Current and power measured under resistive load
**Output power may vary depending on mains voltage and usage conditions
***Measurements relating to power supply dimensions may vary by approximately 2mm
