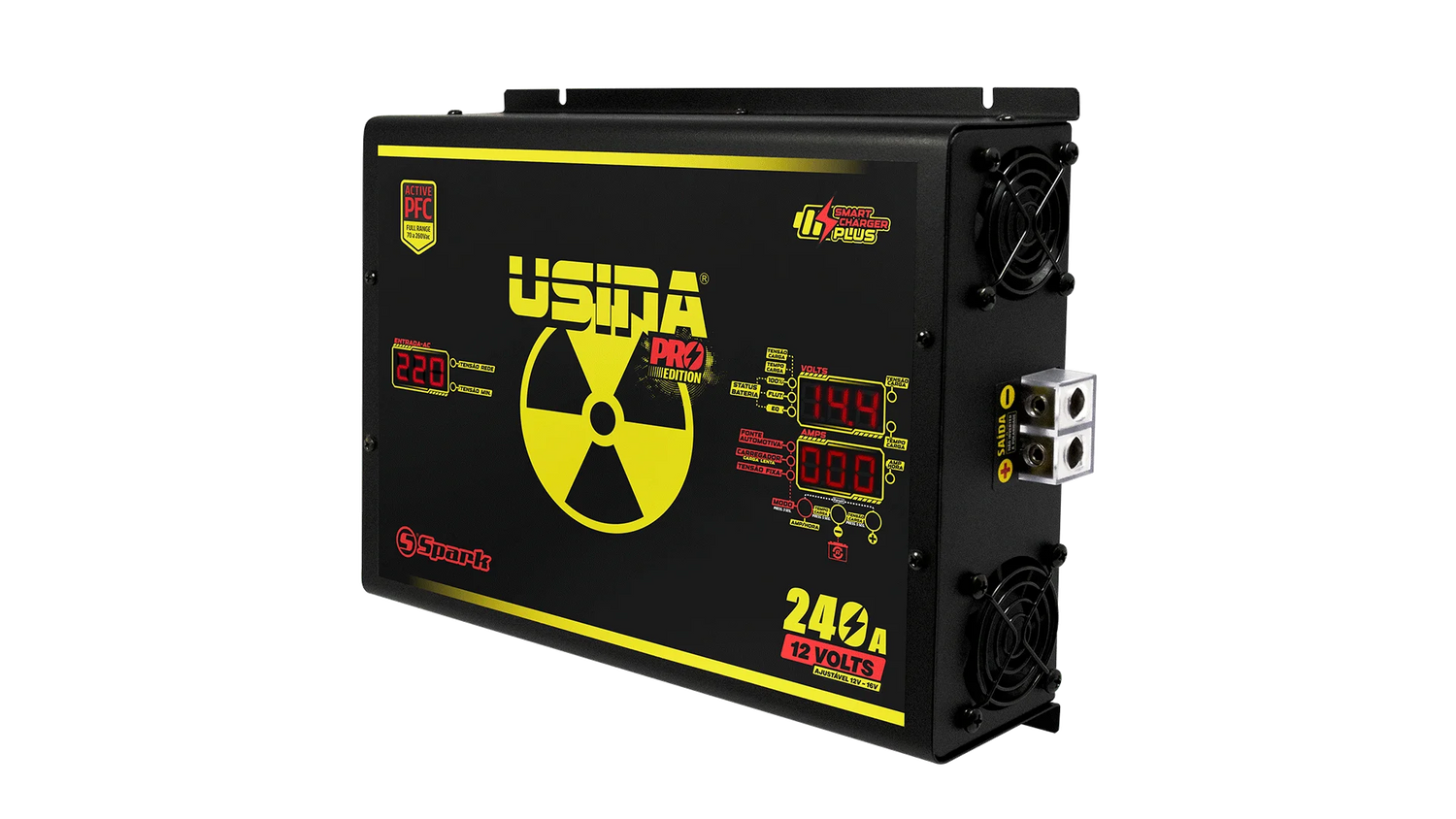

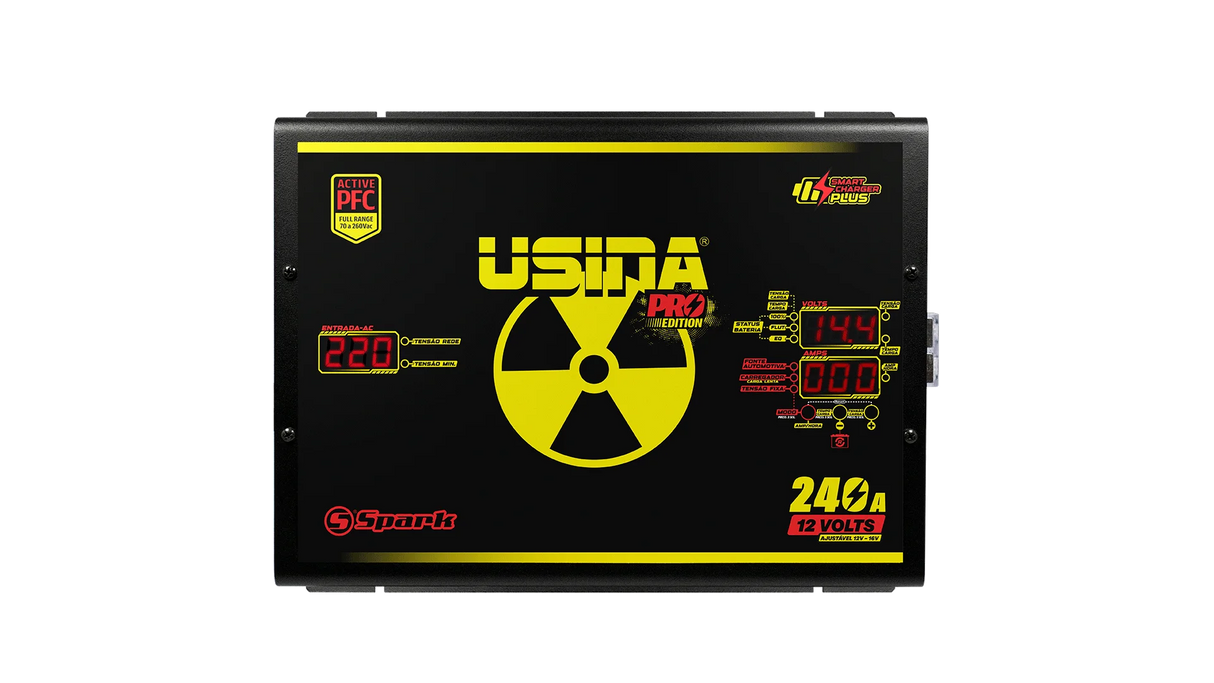

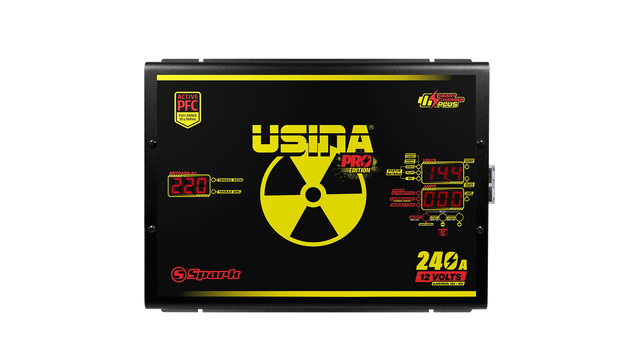

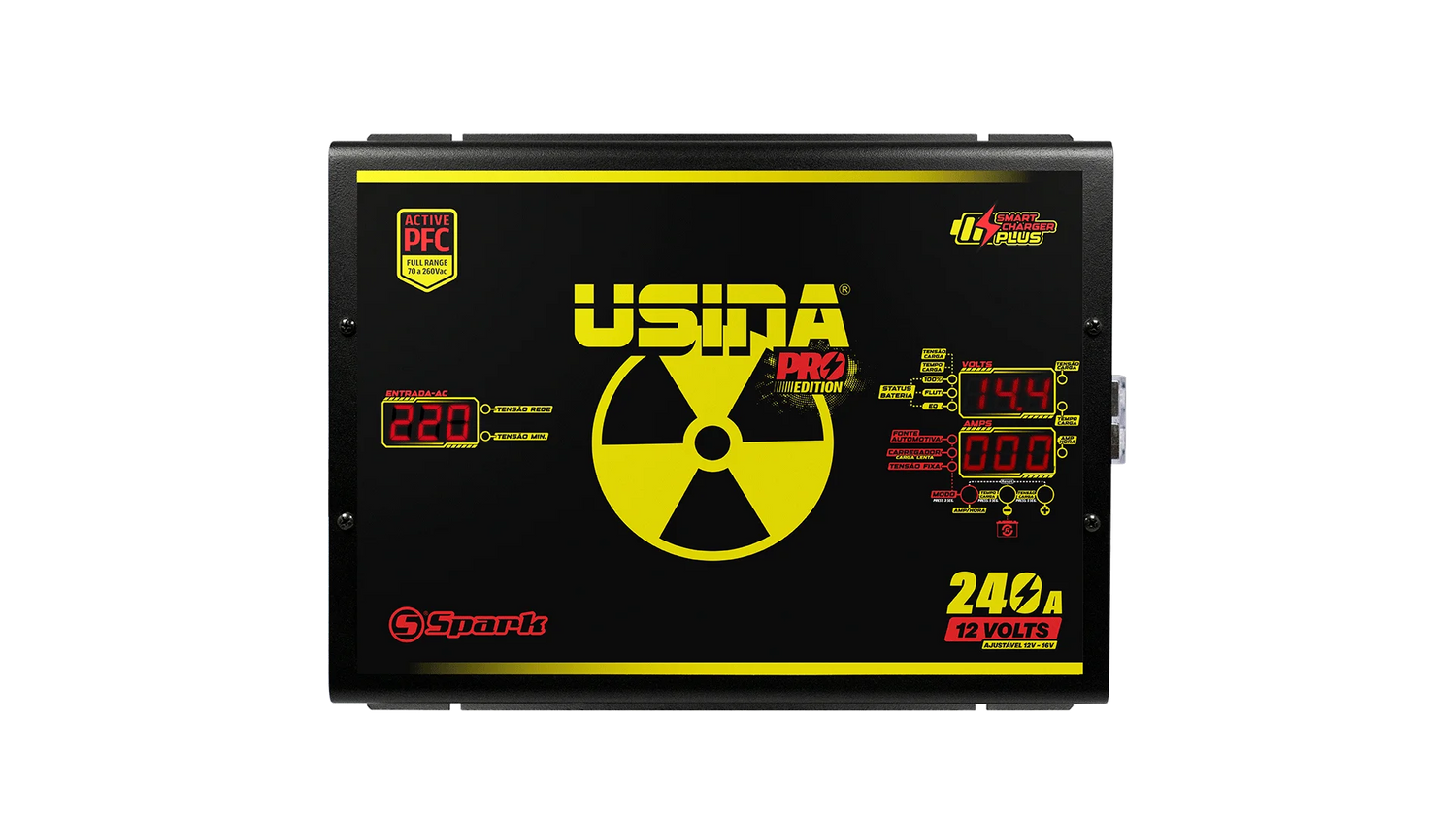

Usina Pro Edition 240A Charger at Sound Auto Concept

Discover our high-performance power supply, designed to meet the demands of car audio and electronics enthusiasts. With an impressive output power of 3120 Watts and an efficiency of between 80% and 85%, it provides reliable and efficient power for all your equipment. Its high power factor, combined with 32A circuit breaker protection, guarantees safety and optimal performance.

Specifications:
Input voltage: 70 @ 260Vac
Input current (max.): 32A
Input Power: 3800 Watts (maximum)**
Power factor: 0.95 @ 0.99
Output voltage: 12 @ 16Vdc (+- 1%)
Output current: 240A @ 13Vdc (+- 5%)*
Output Power: 3120 Watts (maximum)**
Yield: 80% @ 85%
Input cable: 3x2.5mm² - 2P+T
Input protection: 32A circuit breaker
Output cable: 50mm²
Recommended extension: 4mm² (max 30 meters)
Approximate weight: 4,900 kg
Recommended generator: 10.0Kva
Approximate dimensions (WxDxH): 365mm x 253mm x 80mm***

*Current and power measured under resistive load
**Output power may vary depending on mains voltage and usage conditions
***Measurements relating to power supply dimensions may vary by approximately 2mm
