Description

6-channel PWM amplifier with integrated DSP Mosconi Pico V2 6|8 DSP

  • 6 channel amplifier
  • Class D technology
  • Built-in 8-channel DSP
  • Up to 440 watts of total power
  • Generation 2024

Introducing the Mosconi Pico V2 6|8 DSP

With the PICO V2 6|8 DSP, MOSCONI is launching the second generation of PICO DSP amplifiers onto the car hi-fi market. In addition to improved connectivity, the new PICO boasts improved sound performance and greater efficiency.

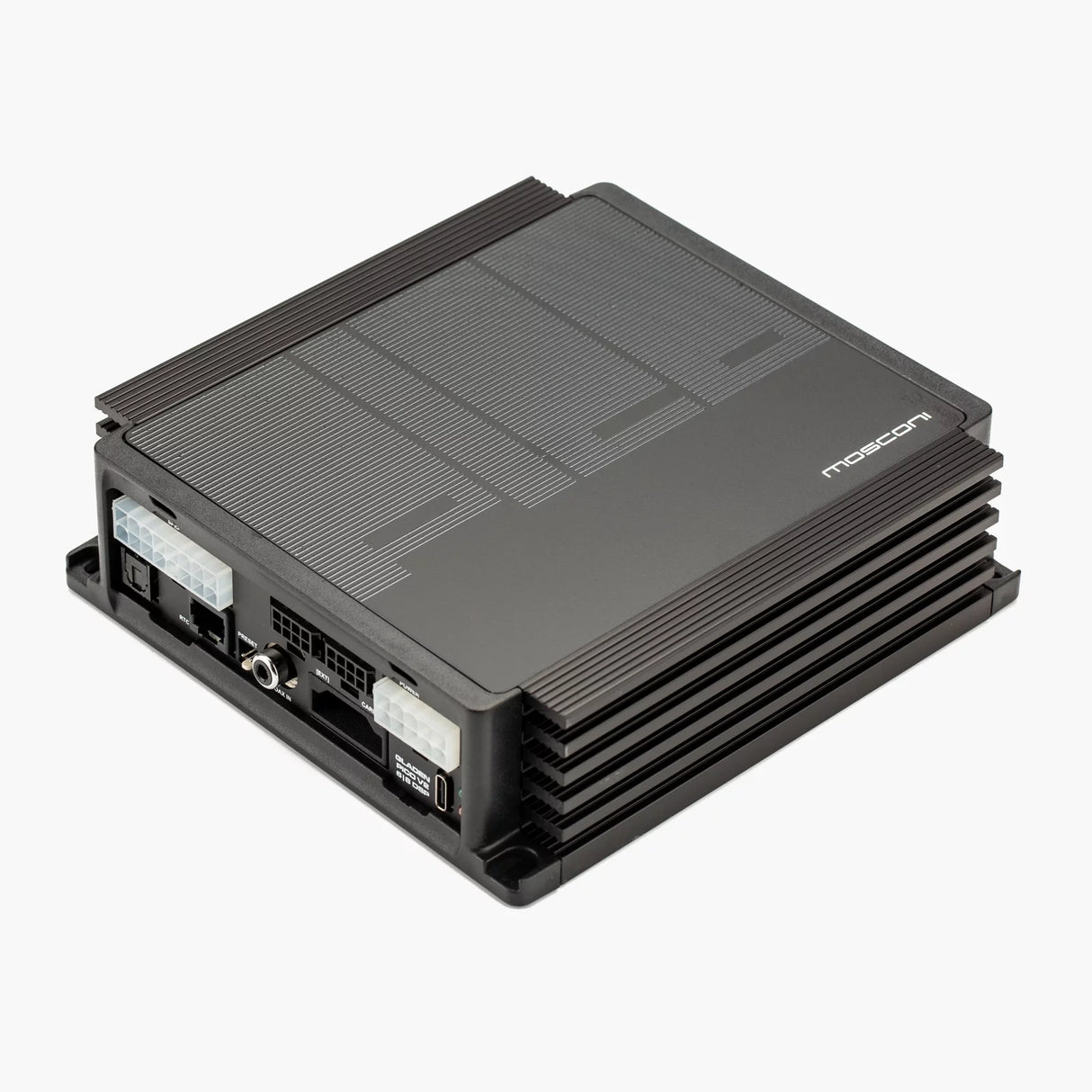

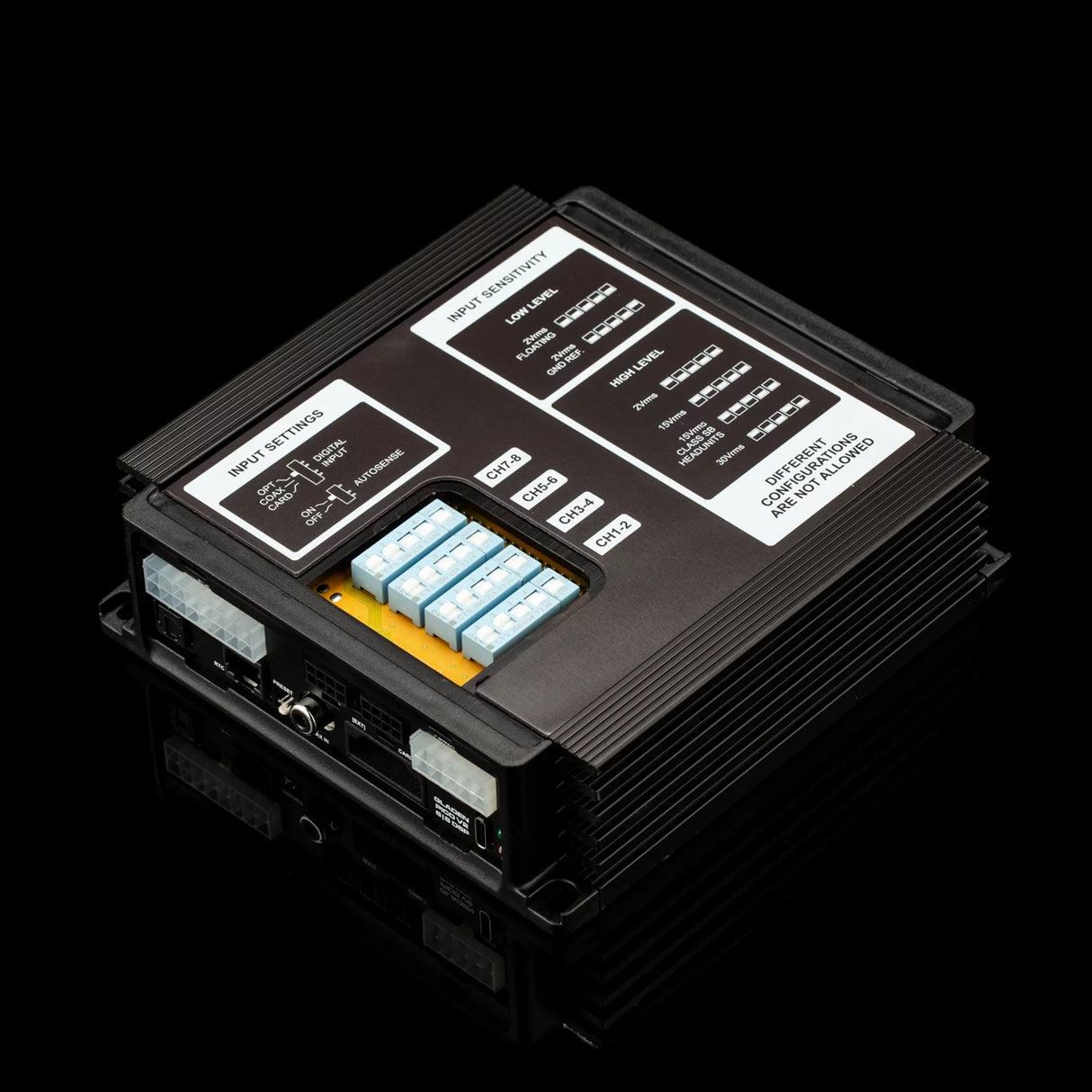

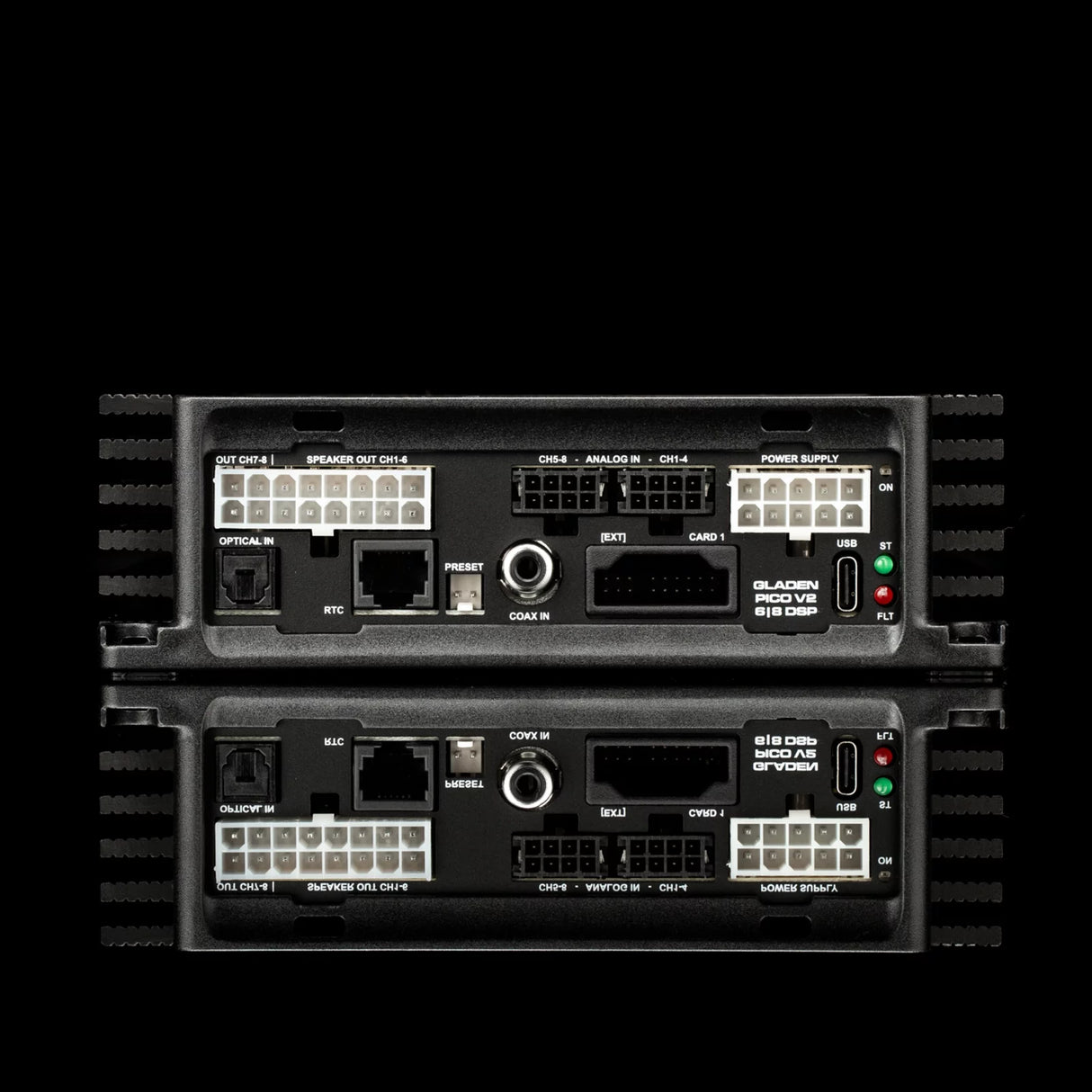

All connections are now grouped on one side and all adjustment switches necessary for operation in modern vehicles are located under a magnetic cover.
Additionally, all inputs are high- and low-level compatible. All desired DSP adjustments can now be made via a USB-C connection.

Perfect OEM integration:

Powerful DSP amplifier optimized for factory radio use. Eight analog inputs up to 30 V, flexible routing, 3 input EQs and delay. With 4 x 50 W + 2 x 80 W, ideal for active and semi-active systems, as well as for classic front, rear and subwoofer applications. With two digital inputs (SP-Dif and BT+) and two processed line outputs, ready for the future.

High-speed transducerless PWM power amplifiers:

High-efficiency PWM output stages with the world's fastest carrier frequency (> 2 MHz). Modulation is performed without a digital-to-analog converter (DAC) directly from the DSP's 48 kHz TDM signal, reducing noise floor and THD+N to approximately 0.02% / 1 W.

To input:

  • 8 switchable analog inputs (high level / low level) compatible with class SB, 2-30 V
  • 1 x optical SP-Dif digital input (sampling frequency 8 kHz - 96 kHz)
  • 1 x coaxial digital input (sampling rate 8 kHz to 96 kHz)
  • 1 BT port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for BT streaming module Mos_BTS)
  • BT Extended Digital Audio Port (BT+)
    (flexible synchronous digital input from 8 kHz to 384 kHz for 2 to 16 channel audio sources, direct jitter-free DSP access, e.g. for BT MOS BTS-LD4C streaming module or extended analog inputs)

DSP:

  • 912 MHz, 32-bit audio port, 64-bit core
  • 56-bit double-precision filter calculation
  • Sampling rate 96 kHz

CONTROL:

  • 1 x remote connector (analog, for RTC.2 roti remote control)
  • 1 BT+ control port (MOS-BT3.0 connection (app control), RC-Can (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C high-resolution streaming module, Gladiator controller
  • 1 remote output, 1 remote input, automatic remote control for high level connection
  • Connections with MOLEX® socket contacts
  • Very small size with low heat generation, ideal for installation behind panels

SOFTWARE:

  • 3 x 9-band parametric input equalizer (desequalization)
  • 6 x Input Delay 0 - 3 ms / 0.01 ms (Offset)
  • 10 x digital input level control (signal conditioning)
  • Flexible mixer for signal routing
    (separate side, can add and subtract, 10 inputs to 4 x 2 output groups)
  • 6 x 30 bands or 4 x 30 bands + 2 x 15 bands group EQ
    (parametric, relative phase remains stable)
  • 8 x 10-band output filters
  • High-pass / Low-pass / Highshelf / Lowshelf / Notch / All-pass 1st + 2nd order / Speaker EQ)
  • 8 x speaker delay 0 - 12 ms, 0.02 ms
  • 8 x Speaker Phase Switch
  • Flexible phase control with calculation tool
  • Comprehensive integrated analysis tools
  • Compatible with BARNIE

Technical data Mosconi Pico V2 6|8 DSP

Output power/output side:

  • Output power at 4Ω:

    4 x 50 Watts (channels 1 - 4) 3 Ohm stable (not bridgeable!)

  • Output power at 4Ω:

    2 x 80 watts (channels 5 - 6) 2 ohms stable / bridgeable

  • Output power at 4Ω:

    4 x 45 Watts + 1 x 210 Watts (bridged channels 5 + 6)

  • Line output:

    2 x 2 Vrms line output

Features:

  • Input voltage:

    2 Vrms (LL) - 15 Vrms (HL) default - 30 Vrms (HL)

  • Overall effectiveness:

    > 80%

  • Automatic activation (high level only):

    Off - BTL

  • Dimensions:

    150 x 160 x 46 mm

  • Weight:

    1150 grams
