SE800.6DSP DSP Amplifier
6-channel Class D amplifier with 8-channel sound processor
The SIGNUM SE800.6DSP power amplifier is currently the gateway to high-quality ESX DSP audio technology. With 6 amplifier channels and 8 DSP channels, it offers exceptional sound quality and high adaptability. Thanks to integrated Bluetooth® and control via app or PC, it is comfortable and versatile. A major highlight: the automatically switching convertible configuration, which optimally adjusts the sound when the roof is open. The package is rounded off by an elegant and robust cast aluminum housing. The ideal control center to take your audio system to the next level.
The SE800.6DSP impresses with its powerful dual-core DSP processor, which ensures ultra-fast signal processing and precise sound tuning. With a power output of 6 x 125 watts RMS, it always has enough reserve to drive all speakers with sufficient power and excellent sound fidelity.
Thanks to the integrated Bluetooth® module , you can stream your music wirelessly and simultaneously control the processor functions via the DSP MASTER app . This intuitive application allows you to make all settings directly from your smartphone, without having to connect a PC. If you prefer control from your computer, you can also use the DSP MASTER PC software .
Another highlight is the optional RC-SXE remote control , with which you can not only control the main volume and subwoofer level, but also manage music streamed from your smartphone directly via Bluetooth and also select tracks.
Features
- 32-bit, 122.88 MHz dual-core audio signal processor
- 48 kHz sampling rate / Full HD audio
- HP/LP/BP filters with a slope of 6 to 48 dB
- Time Correction 0~15ms / 0.01 steps
- Main Gain – 40 ~ +6 dB
- Channel Gain – 40 ~ +6 dB
- Normal/inverted phase shift
- Input mixer, subwoofer controller
- 8 x 31-band output equalizer, +/-12/18 dB / 0.1 dB steps
-
DSP control via DSP Master
- PC software for Microsoft ® Windows™ 10 or later - Built-in Bluetooth® receiver for DSP control via app and Full HD audio streaming
- REM OUT function for external devices, switching output for e.g. convertible tops (Mode Preset Switch)
- Optional Accessories: RC-SXE (OLED Remote Control)
Features
6-channel Class D amplifier with
8-channel digital sound processor
6 x 80/125 watts RMS at 4/2 Ω
3 x 250 watts RMS at 4 Ω bridged
Frequency range 10 ~ 21,000 Hz
Working voltage 8.0~18V
Dimensions 250 x 47 x 163 mm

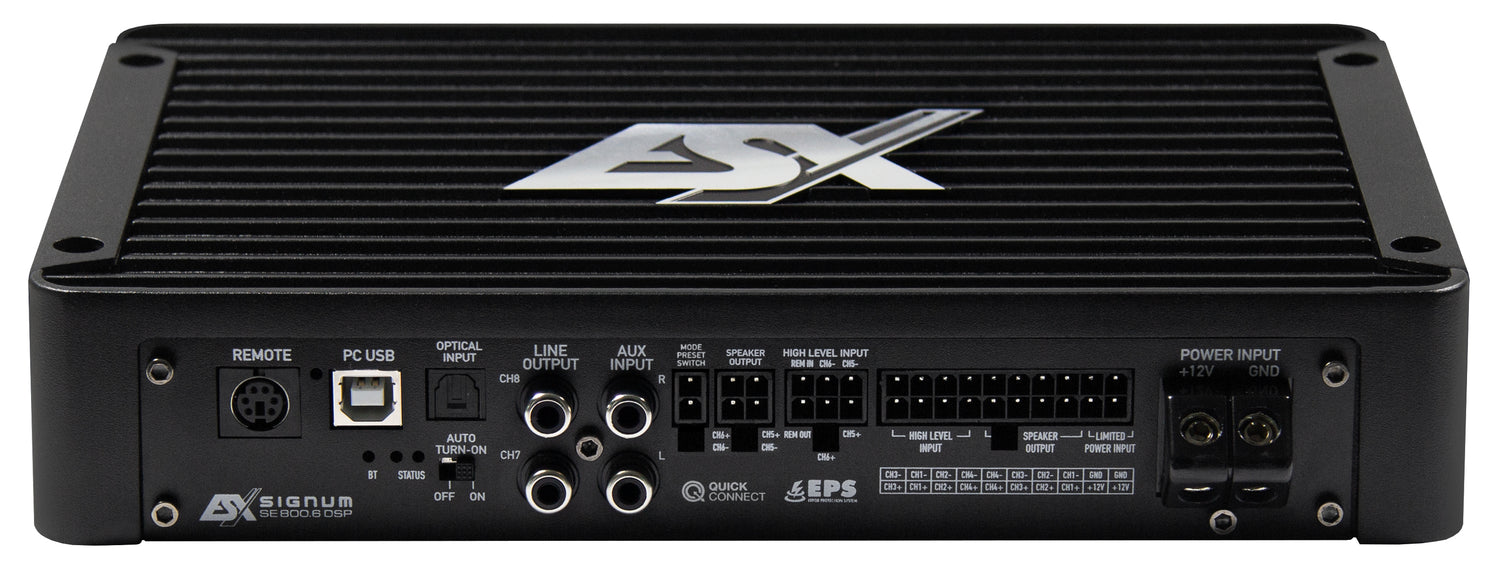

Entrances
6 x High Level Input with EPS ® (via cable jack)
1 x RCA R/L stereo auxiliary input
1 x Optical Stereo, S/PDIF 192 kHz, 24-bit
1 x Bluetooth® stereo audio receiver
1 x USB Type B for PC software
1 x 6-pin DIN for optional remote control outputs
2 x RCA line output at 2 V/RMS
6 x Speaker output (via cable jack)
1 x Preset Mode Switch
