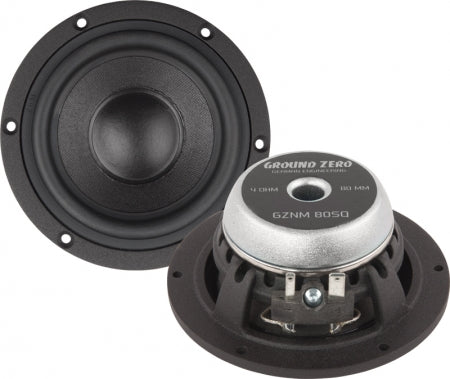

Handcrafted Sound Quality 8cm 60WRMS Tweeters sold in pairs

Features

- Extremely compact high end midrange chassis
- High efficient neodym magnets
- Handmade in Germany

Technical data

Model

GZNM 80SQ

Kind

Middle toner / Midrange

Diameter of midwoofer or midrange

80 mm / 3.15"

Mounting diameter of midwoofer or midrange

94 mm / 3.7"

Mounting depth of midwoofer or midrange

34 mm / 1.34"

Voice coil of midwoofer or midrange

25 mm / 1"

Midwoofer or midrange cone

Applications Paper / Coated paper

Dustcap / Phaseplug of midwoofer or midrange

Applications Paper / Coated paper

Basket of midwoofer or midrange

Aluminum Guß / cast

Magnet of midwoofer or midrange

Neodym

Diameter of tweeter

-

Mounting diameter of tweeter

-

Mounting depth of tweeter

-

Voice coil of tweeter

-

Cone of tweeter

-

Tweeter housing

-

Tweeter magnet

-

Power handling WRMS

60 W

Power handling W peak

100 W

Impedance

4 Ohm

SPL

88 dB

Frequency response

150 - 5000 Hz
