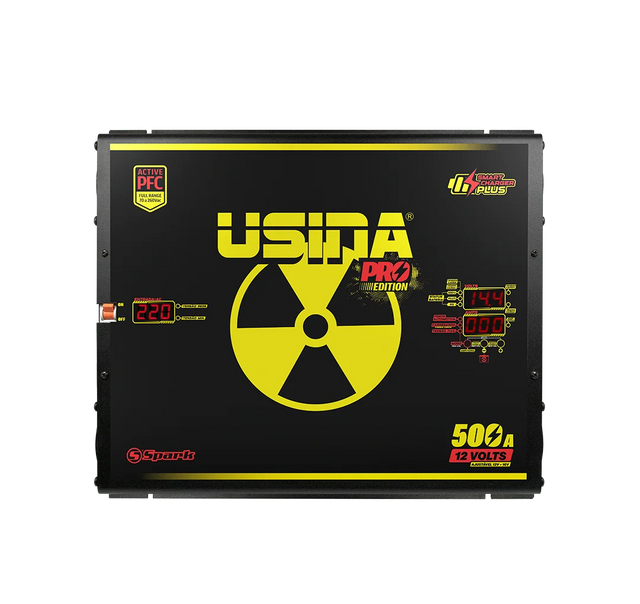

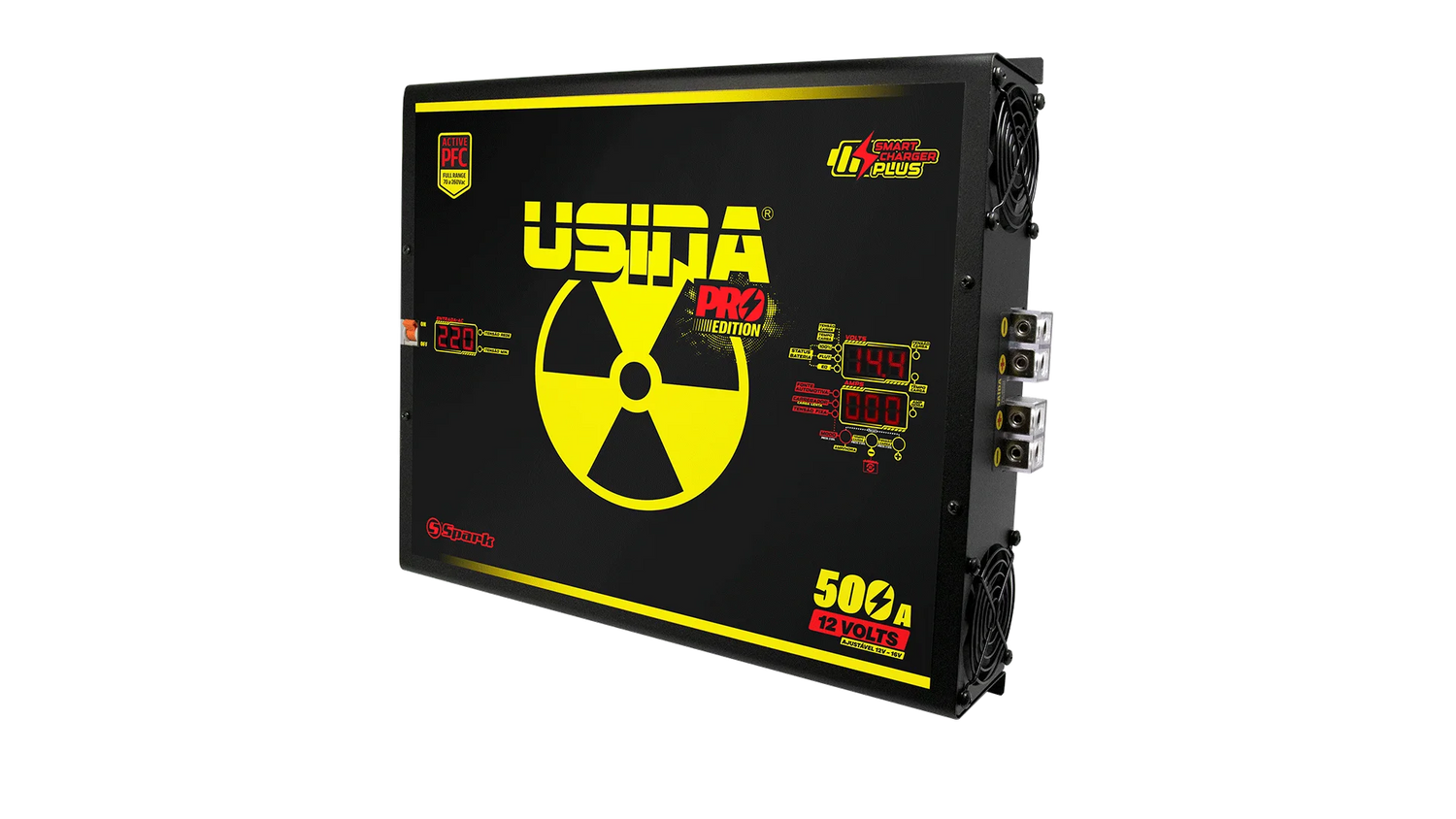

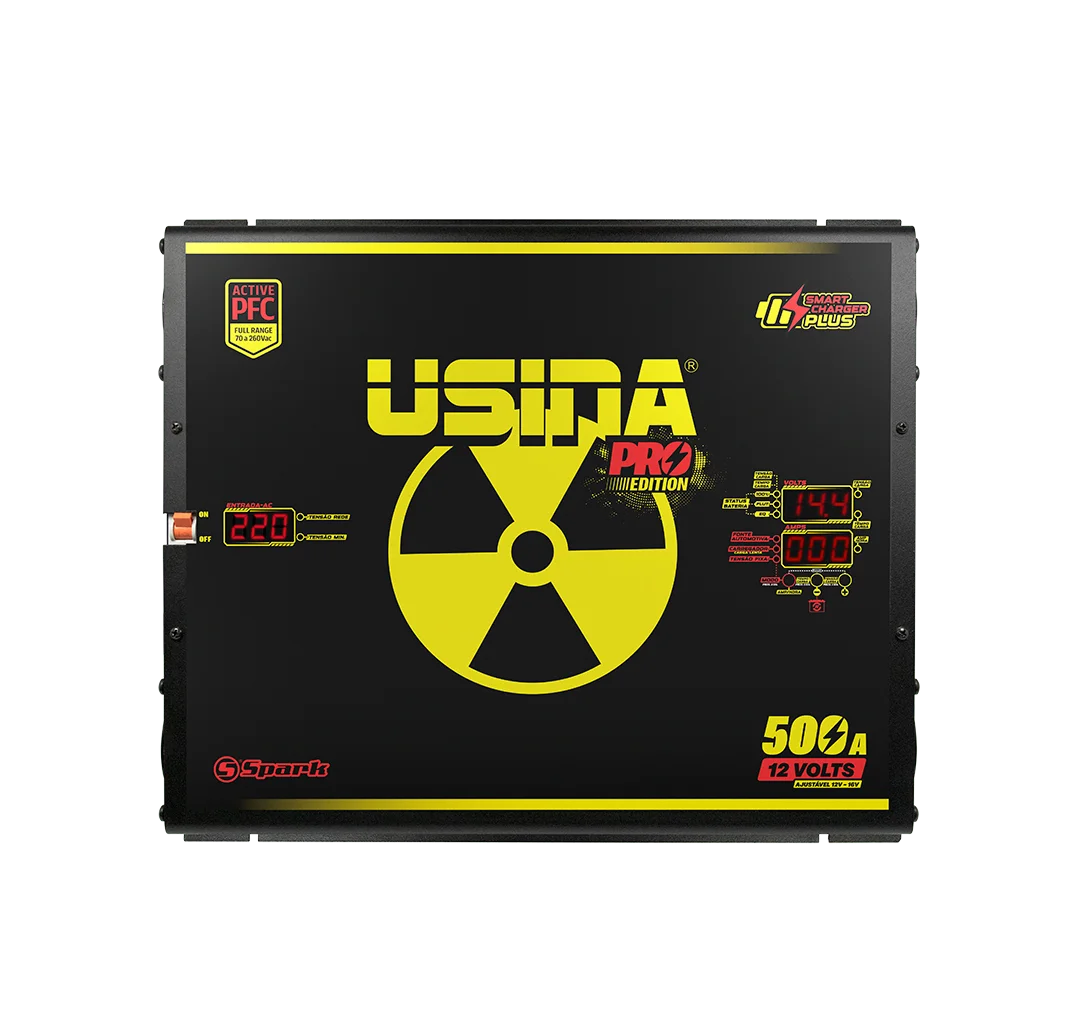

Usina Pro Edition 500A Charger at Sound Auto Concept

Discover our high-power power supply, ideal for car audio enthusiasts and demanding electronic systems. With an impressive 6500 Watts of output power and optimized efficiency up to 85%, this power supply is designed to boost even your most power-hungry equipment. Its high power factor and 50A circuit breaker protection ensure safety and reliability for maximum performance. Leave no room for compromise.

Specifications:
Input voltage: 70 @ 260Vac
Input current (max.): 50A
Input Power: 7500 Watts (maximum)**
Power factor: 0.95 @ 0.99
Output voltage: 12 @ 16Vdc (+- 1%)
Output current: 500A @ 13Vdc (+- 5%)*
Output Power: 6500 Watts (maximum)**
Yield: 81% @ 85%
Input cable: 2x6mm²
Input protection: 50A circuit breaker
Output cable: 2 x 50mm²
Recommended extension: 6mm² (max 30 meters)
Approximate weight: 10.950 kg
Recommended generator: 20.0Kva
Approximate dimensions (LxDxH): 460mm x 370mm x 90mm***

*Current and power measured under resistive load
**Output power may vary depending on mains voltage and usage conditions
***Measurements relating to power supply dimensions may vary by approximately 2mm
